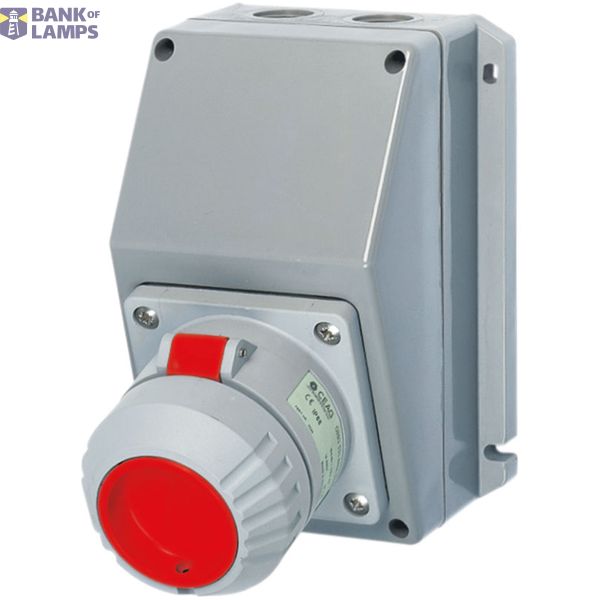

WALL SOCKET 16A-4POL-6H/240V/415V image 1
WALL SOCKET 16A-4POL-6H/240V/415V image 2

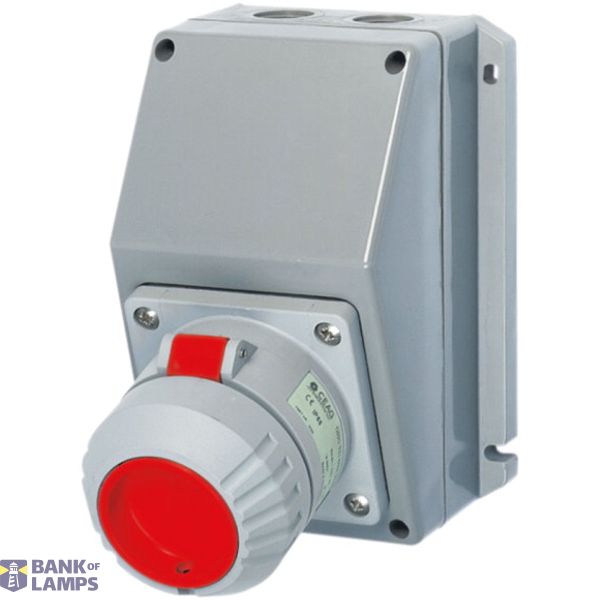

WALL SOCKET 16A-4POL-6H/240V/415V image 3
WALL SOCKET 16A-4POL-6H/240V/415V image 4
WALL SOCKET 16A-4POL-6H/240V/415V thumbnail 1
WALL SOCKET 16A-4POL-6H/240V/415V thumbnail 2
WALL SOCKET 16A-4POL-6H/240V/415V thumbnail 3
WALL SOCKET 16A-4POL-6H/240V/415V thumbnail 4
EATON

WALL SOCKET 16A-4POL-6H/240V/415V

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name WALL SOCKET 16A-4POL-6H/240V/415V
Brand EATON
ETIM EC001321
IEC-amperage 16 A
Connection system Screwed terminal
Contact material CuZn
Degree of protection (IP) IP66
Voltage according to EN 60309-2 400-440 V (50+60 Hz) red

Packing details

Packing level 1 4250217407604

Other Technical data

Model Surface mounted (plaster)
RAL-number 7.035
Cable entry Other
Number of poles 4
Insulated mounting Yes
Material Plastic
Type of fastening External mounting
Surface treatment contacts Galvanized
Amperage according to UL/CSA (for UL-version) 20 A
Military model No
Clock hour position 6 h
Identification colour Red

Description

Wall socket for industrial application, 16 A, 4-pole380-415 V, 6 h, 4 x PG16 polyamid thread
