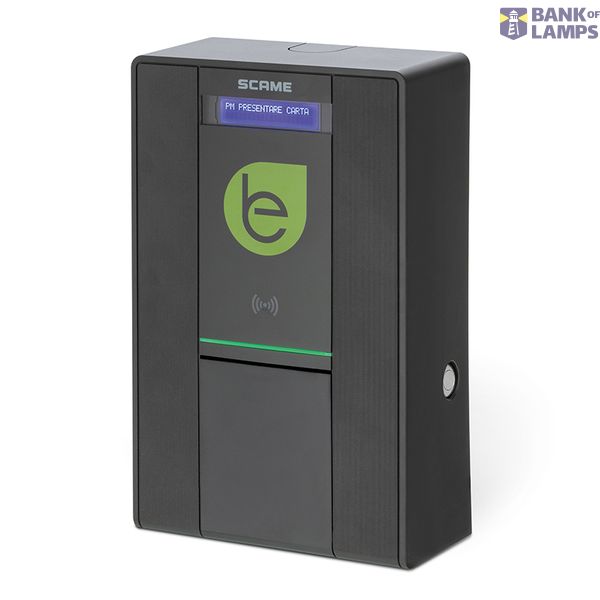

WALL BOX 1 SOCKET TYPE 2 22kW TA+LCD+DC image 1
WALL BOX 1 SOCKET TYPE 2 22kW TA+LCD+DC image 2
WALL BOX 1 SOCKET TYPE 2 22kW TA+LCD+DC image 3
WALL BOX 1 SOCKET TYPE 2 22kW TA+LCD+DC image 4
WALL BOX 1 SOCKET TYPE 2 22kW TA+LCD+DC image 5
WALL BOX 1 SOCKET TYPE 2 22kW TA+LCD+DC thumbnail 1
WALL BOX 1 SOCKET TYPE 2 22kW TA+LCD+DC thumbnail 2
WALL BOX 1 SOCKET TYPE 2 22kW TA+LCD+DC thumbnail 3
WALL BOX 1 SOCKET TYPE 2 22kW TA+LCD+DC thumbnail 4
WALL BOX 1 SOCKET TYPE 2 22kW TA+LCD+DC thumbnail 5
Scame

WALL BOX 1 SOCKET TYPE 2 22kW TA+LCD+DC

Discontinued Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name WALL BOX 1 SOCKET TYPE 2 22kW TA+LCD+DC
Brand Scame
Country of origin* IT
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
ETIM EC002883
Max. power per charging point 22 kW
Installation side connection model 3-phase

Packing details

Packing level 1 8001636445403

Other Technical data

Mounting method Wall mounting
Width 235 mm
Height 370 mm
Depth 115 mm
Housing material Plastic
Impact strength IK08
Degree of protection (IP) IP54
Number of charging units 1

Description

Type 2 3P+N+E 32A 400V~ 22kW 32A 400V 3P+N+E IP54 IK08
