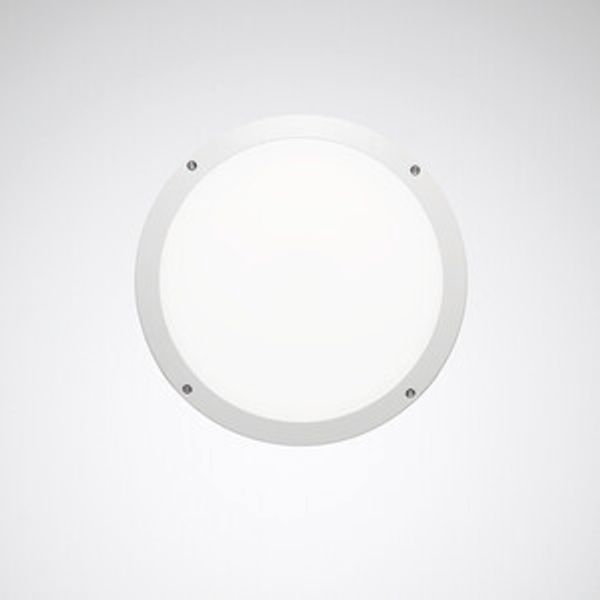

Wall and ceiling luminaire Skeo Circ Multilumencolor 3 Diffuser White ETDD 18W 85 rotationally sym. wide (RB) IP65 IK10 4 SDCM

Round, decorative LED surface-mounted luminaire for wall and ceiling mounting with IP65 protection rating. The wall luminaire, thanks to its optical and technical design features, harmonises with other luminaires that might be used in the project. Can also be used holistically inside buildings. Surface-mounted luminaires for ceiling and wall mounting. With rotationally symmetric wide light distribution. Luminaire luminous flux adjustable in 3 levels, light color adjustable in 2 levels. The LED system forms a solidly connected unit with the luminaire cover and can be replaced. LED system with adjustable luminaire luminous flux and adjustable light colour via DIP switch. Luminaire luminous flux 1700 lm - 1800 lm, connected load 18 W - 18 W, maximum luminous efficiency of luminaire 100 lm/W. Selectable colour temperature: 3000 / 4000 K, general colour rendering index (CRI) Ra > 85. Colour locus tolerance (initial MacAdam) ≤ 4 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body of die-cast aluminium. Cover of highly impact-resistant PMMA, opal. Surface coated white (RAL 9010). Luminaire diameter 265 mm, luminaire height 75 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP65, Protection rating of lamp compartment: IP65. impact resistance level in accordance with IEC 62262: IK10. Protection rating of lamp compartment: IP65. Weight: 1,8 kg. With 5-pole terminal to 2.5 mm2 for mains connection and further wiring The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The LED system with control gear unit is suitable for operation on direct voltage supply grids. Surge voltage resistance Differential Mode / Common Mode: 1 kV / 2 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
