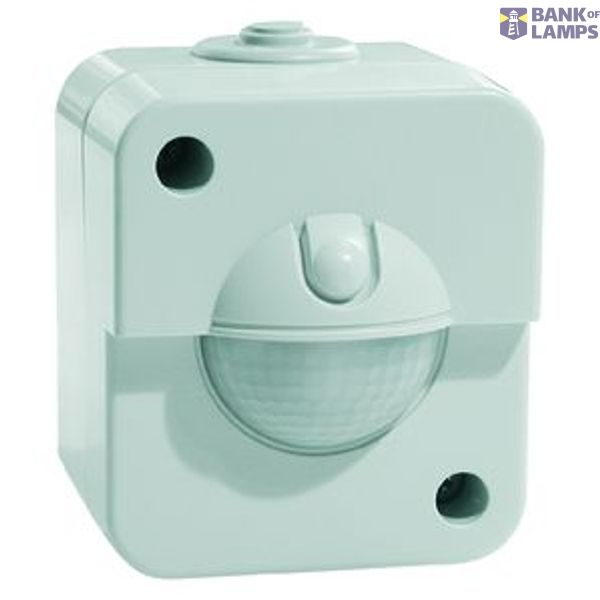

WAB bewegingsmelder 180º infraroodopbouw, voor wandmontage
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | WAB motion detector 180º infrared surface-mounted, for wall mounting |
| Brand | Peha by Honeywell |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8531 1030 00 |
| ETIM | EC000133 |
| Mounting method | Surface mounted (plaster) |
| Colour | Grey |
| Model | Movement sensor |
| Frequency | 50 Hz |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 8 m |
| Max. switching power | 1000 W |
| Degree of protection (IP) | IP54 |
| Min. switch-on time | 10 s |
| Max. duty cycle | 30 min |
| Response value luminosity adjustable | Yes |
| Optimum mounting height | 1.1 m |
Packing details
| Packing level 1 | 4010105978599 |
Other Technical data
| Halogen free | Yes |
| Surface protection | Untreated |
| Creep-under protection | No |
| Staircase monitoring | No |
| Bridging switch | No |
| Suitable for wireless transmission | No |
| Material quality | Thermoplastic |
| Material | Plastic |
| Response value sensitivity adjustable | No |
| Dim function with dimmer basic element | No |
| Response value luminosity | 2-2000 lx |
| Diameter detection range on floor | 16 m |
| Remote operation | No |
| HVAC-control | No |
| Constant light control | No |
| Substation input | No |
| With signal unit | No |
| Teach-function for response value luminosity | No |
| Networkable | No |
| Forced switch off | No |
| With alarm function | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle horizontal | 180 ° |
Downloads
Description
WAB Bewegingsmelder 180° IR Opbouw-bewegingsmelder IR voor wandmontage WAB-Design Technische gegevens: Detectiehoek: 180° horizontaal, 90° verticaal Reikwijdte: max. 8 m Montagehoogte: ca. 1,1 m en 2,2 m boven deur Sensor: Infrarood Lichtwaarde instelling: 2-2000 Lux Tijdsinstelling: 10 sec.-30 min. Continuelicht: schakelbaar (max. 2 uur., LED-in) Voedingsspanning: 230 V, 50 Hz Kontactopening: µ < 1,2 mm Schakelvermogen: max. 1000 W ohmse belasting max. 500 VA inductief, cos phi 0,5 max. 2 EVG’s, let op de EVG’s inschakelpiekstroom Afmeting: H 82 x B 72 x T 67 mm Beschermingsklasse: IP 54
