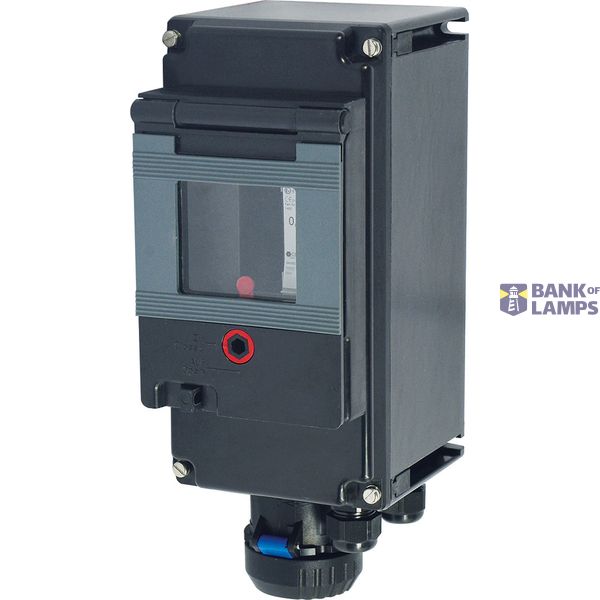

W SOCKET 16A-3P-4H/130V ELCB image 4
W SOCKET 16A-3P-4H/130V ELCB image 5

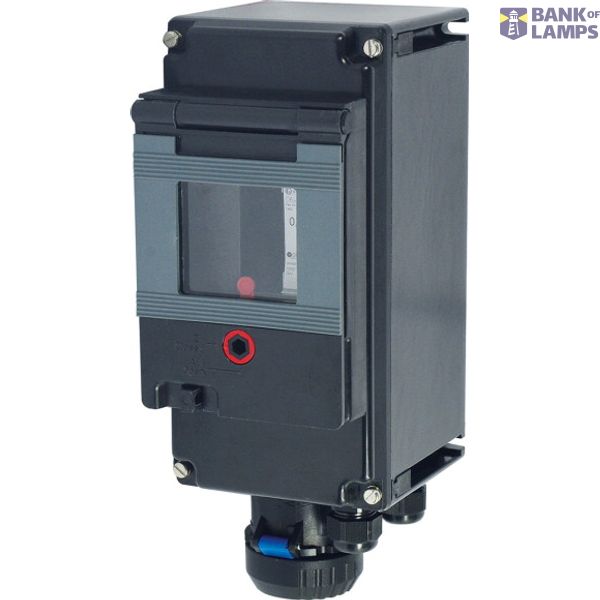

W SOCKET 16A-3P-4H/130V ELCB image 6
W SOCKET 16A-3P-4H/130V ELCB thumbnail 1
W SOCKET 16A-3P-4H/130V ELCB thumbnail 2
W SOCKET 16A-3P-4H/130V ELCB thumbnail 3
W SOCKET 16A-3P-4H/130V ELCB thumbnail 4
W SOCKET 16A-3P-4H/130V ELCB thumbnail 5
W SOCKET 16A-3P-4H/130V ELCB thumbnail 6
EATON

W SOCKET 16A-3P-4H/130V ELCB

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name W SOCKET 16A-3P-4H/130V ELCB
Brand EATON
ETIM EC000016
Nominal current 16 A
Model Base unit and cover
Switch Mechanical locking
Ex-class IIC
Number of poles 3
Housing material Plastic
Surface treatment contacts Untreated
Mounting direction Vertical
Contact material Other
For Ex-zone gas 1, 2
Clock hour position 4 h
Identification colour Yellow
Voltage according to EN 60309-2 110 V (50+60 Hz) yellow
For Ex-Zone dust 21, 22

Packing details

Packing level 1 4250959911216

Description

Ex-Wall socket for Zone 1/21 with RCBO 30 mA, 16 A for Zone 1/214 h 3-pol. 110 - 130 V, 1 x M25 cable gland, 1 x M25 threaded plug
