ABB

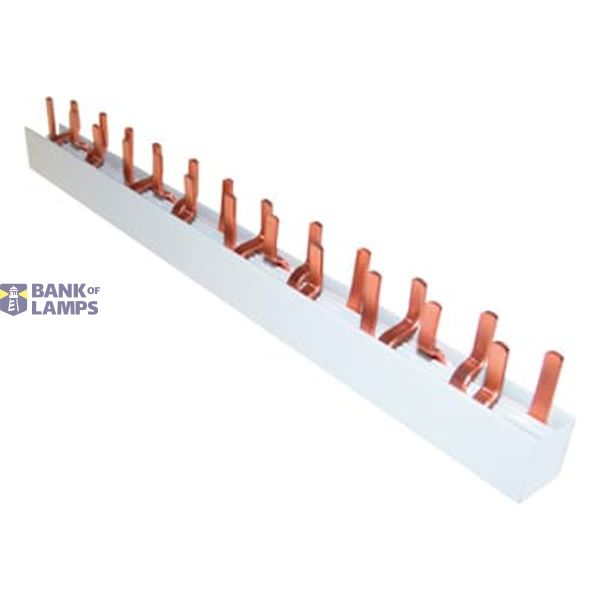

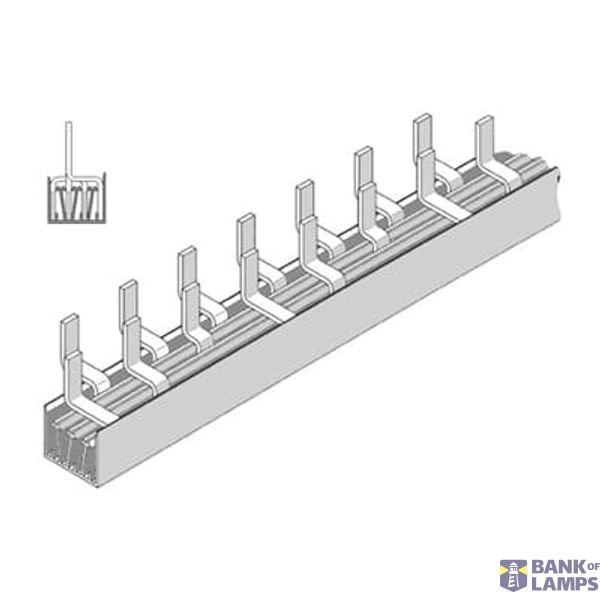

BV-S 3/57/10B Busbar

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name BV-S 3/57/10B Busbar
Brand ABB
Harmonized System Code 8536 9001 00
ETIM EC000215
Insulated Yes
Rated permanent current Iu 80 A
Number of poles 3

Packing details

Packing level 1 5413656505600

Other Technical data

Number of phases 3
Cross section 10 mm²
Length 220 mm
Conditioned rated short-circuit current Iq 25 kA
Width in number of modular spacings 12
Rated surge voltage 4 kV
Type of electric connection Pin
Suitable for devices with auxiliary switch No
Suitable for devices with N-conductor No
Suitable for number of devices 8
Max. rated operation voltage Ue 500 V
Module width 9 mm

Downloads

Product data sheet

Description

Busbar Unibis 3P 10mm2 24 PINs
