ABB

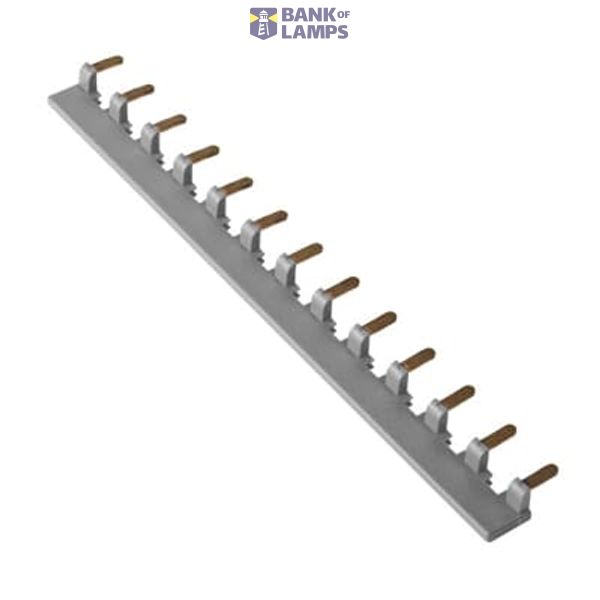

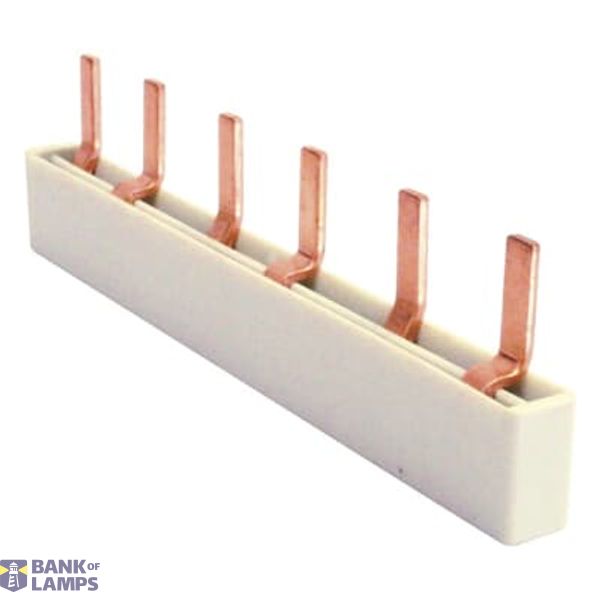

BV-S2/18/10 Busbar

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name BV-S2/18/10 Busbar
Brand ABB
Harmonized System Code 8536 9001 00
ETIM EC000215
Insulated Yes
Rated permanent current Iu 63 A
Number of poles 1

Packing details

Packing level 1 5413656505662

Other Technical data

Number of phases 1
Cross section 14 mm²
Length 220 mm
Conditioned rated short-circuit current Iq 25 kA
Width in number of modular spacings 12
Rated surge voltage 4 kV
Type of electric connection Pin
Suitable for devices with auxiliary switch No
Suitable for devices with N-conductor No
Suitable for number of devices 13
Max. rated operation voltage Ue 500 V
Module width 9 mm

Downloads

Product data sheet

Description

Busbar Unibis 1P 10mm2 13 PINs L form
