ABB

BV-G 4/56/10B Busbar

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name BV-G 4/56/10B Busbar
Brand ABB
Harmonized System Code 8536 9001 00
ETIM EC000215
Insulated Yes
Rated permanent current Iu 100 A
Number of poles 2

Packing details

Packing level 1 5413656505624

Other Technical data

Number of phases 2
Cross section 10 mm²
Length 1016 mm
Conditioned rated short-circuit current Iq 25 kA
Width in number of modular spacings 57
Rated surge voltage 4 kV
Type of electric connection Fork
Suitable for devices with auxiliary switch No
Suitable for devices with N-conductor Yes
Suitable for number of devices 27
Max. rated operation voltage Ue 500 V
Module width 18 mm

Downloads

Product data sheet

Description

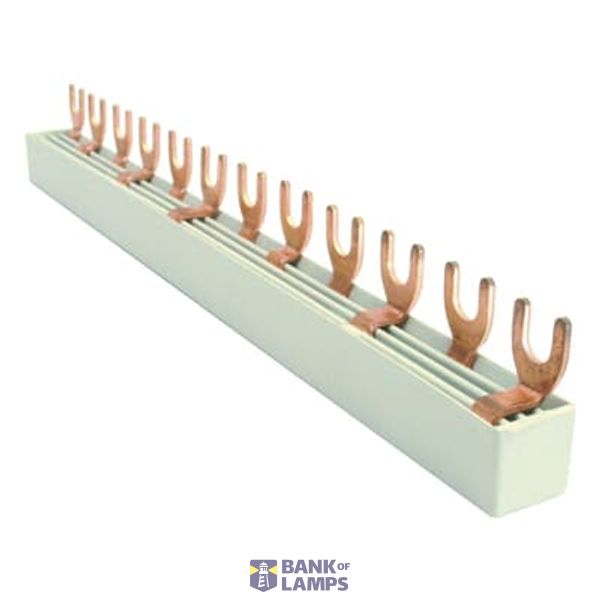

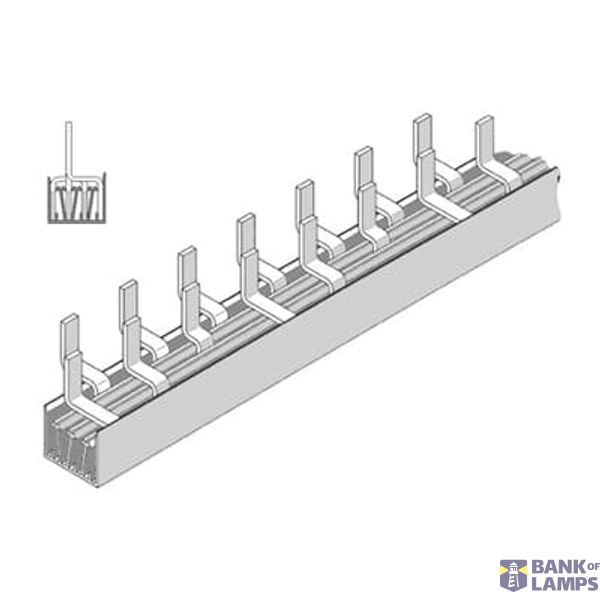

Fork Busbar 4P 10mm2 54 PINs
