ABB

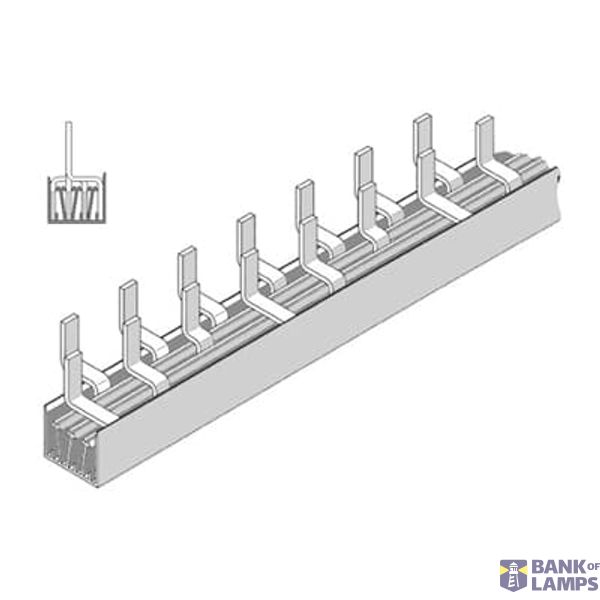

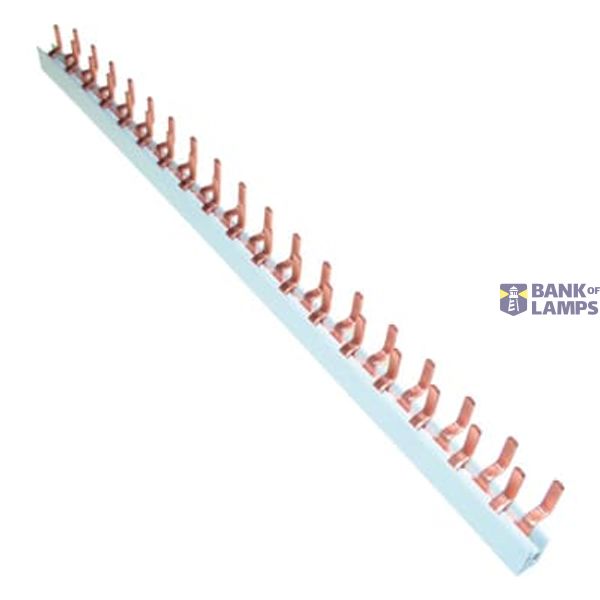

BV-SU2/55/10 Busbar

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name BV-SU2/55/10 Busbar
Brand ABB
Harmonized System Code 8536 9001 00
ETIM EC000215
Insulated Yes
Number of poles 2

Packing details

Packing level 1 5413656505808

Other Technical data

Number of phases 2
Cross section 10 mm²
Length 1000 mm
Conditioned rated short-circuit current Iq 25 kA
Width in number of modular spacings 54
Rated surge voltage 4 kV
Type of electric connection Pin
Suitable for devices with auxiliary switch No
Suitable for devices with N-conductor Yes
Suitable for number of devices 54
Max. rated operation voltage Ue 500 V
Module width 9 mm

Downloads

Product data sheet

Description

Busbar Unibis for AFDD 2P 10mm2 38 PINs
