ABB

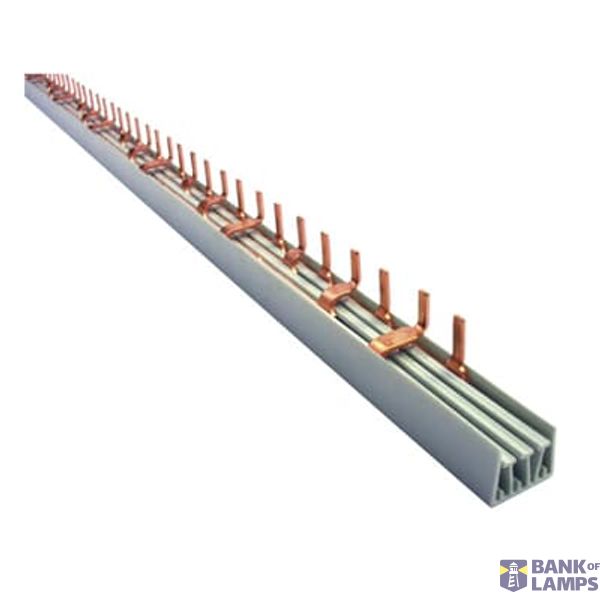

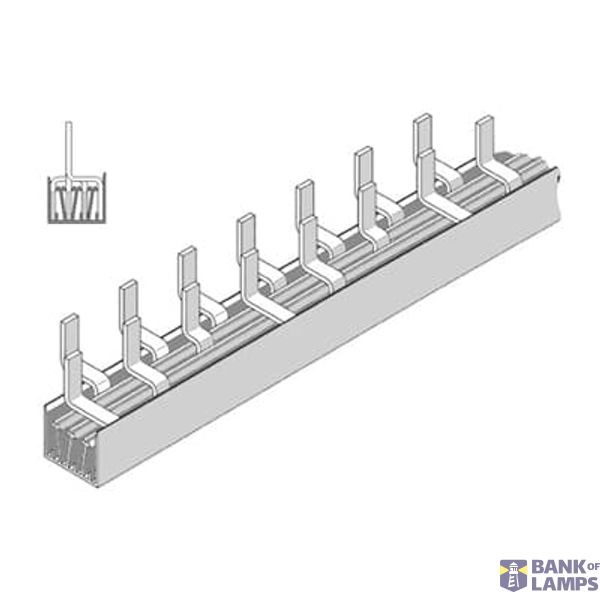

BV-S 4/54/10B Busbar

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name BV-S 4/54/10B Busbar
Brand ABB
Harmonized System Code 8536 9001 00
ETIM EC000215
Insulated Yes
Rated permanent current Iu 80 A
Number of poles 4

Packing details

Packing level 1 5413656505730

Other Technical data

Number of phases 4
Cross section 10 mm²
Length 1000 mm
Conditioned rated short-circuit current Iq 25 kA
Width in number of modular spacings 54
Rated surge voltage 4 kV
Type of electric connection Pin
Suitable for devices with auxiliary switch No
Suitable for devices with N-conductor Yes
Suitable for number of devices 27
Max. rated operation voltage Ue 500 V
Module width 9 mm

Downloads

Product data sheet

Description

Busbar Unibis for AFDD 4P 10mm2 38 PINs
