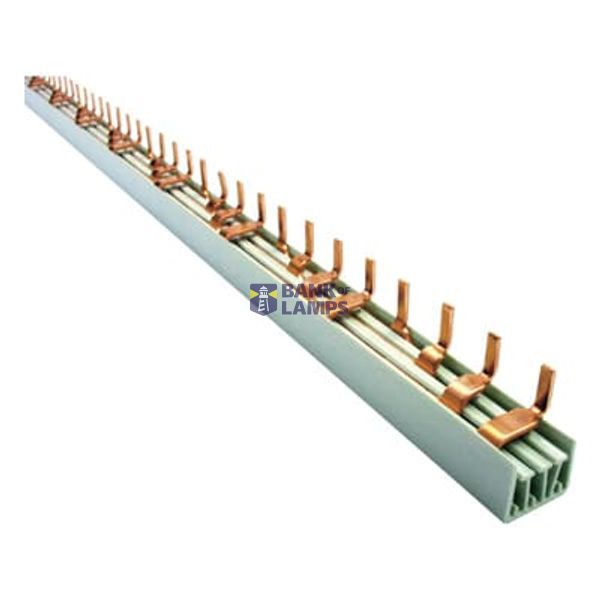

BV-S 4/56/16B Busbar image 3

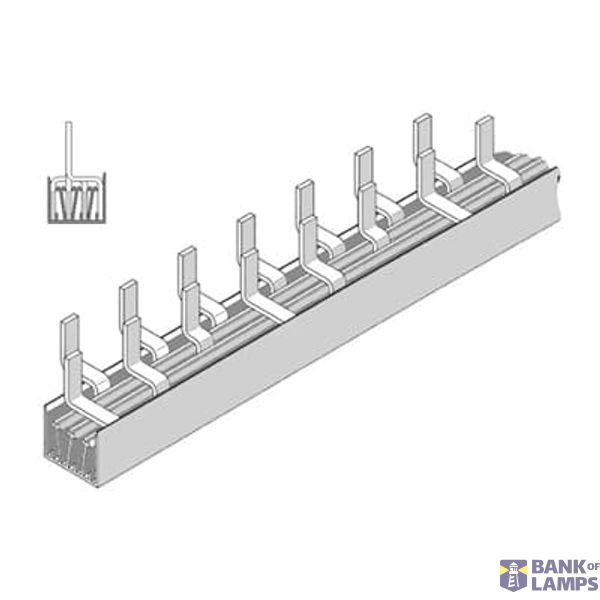

BV-S 4/56/16B Busbar image 4
BV-S 4/56/16B Busbar thumbnail 1
BV-S 4/56/16B Busbar thumbnail 2
BV-S 4/56/16B Busbar thumbnail 3
BV-S 4/56/16B Busbar thumbnail 4
ABB

BV-S 4/56/16B Busbar

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name BV-S 4/56/16B Busbar
Brand ABB
Harmonized System Code 8536 9001 00
ETIM EC000215
Insulated Yes
Rated permanent current Iu 130 A
Number of poles 3

Packing details

Packing level 1 5413656505648

Other Technical data

Number of phases 4
Cross section 16 mm²
Length 1016 mm
Conditioned rated short-circuit current Iq 25 kA
Width in number of modular spacings 56
Rated surge voltage 4 kV
Type of electric connection Pin
Suitable for devices with auxiliary switch No
Suitable for devices with N-conductor Yes
Suitable for number of devices 14
Max. rated operation voltage Ue 500 V
Module width 18 mm

Downloads

Product data sheet

Description

PIN Busbar 4P 16mm2 56 PINs
