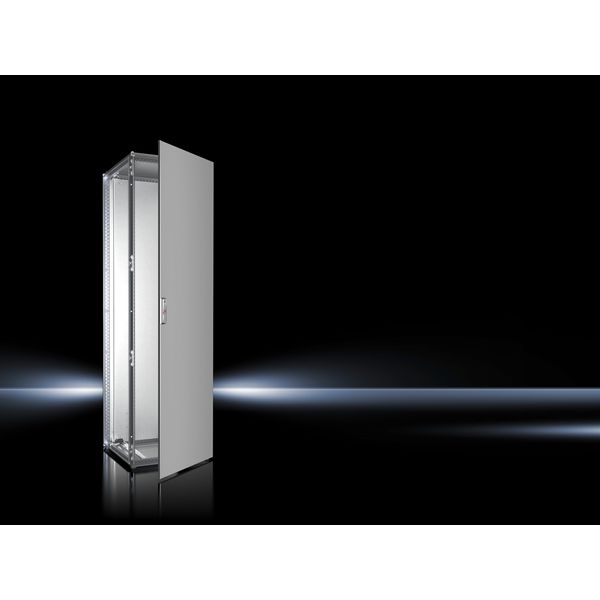

VX Baying enclosure system, WHD: 600x2000x600 mm, stainless steel, single door image 1

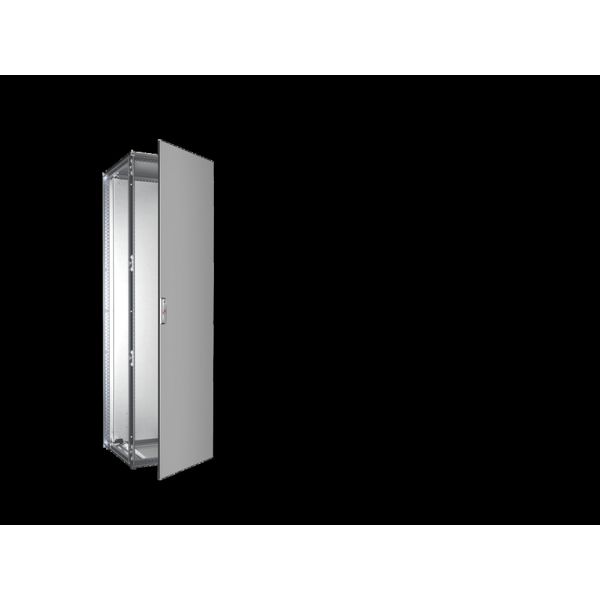

VX Baying enclosure system, WHD: 600x2000x600 mm, stainless steel, single door image 2
VX Baying enclosure system, WHD: 600x2000x600 mm, stainless steel, single door image 3
VX Baying enclosure system, WHD: 600x2000x600 mm, stainless steel, single door image 4
VX Baying enclosure system, WHD: 600x2000x600 mm, stainless steel, single door image 5
VX Baying enclosure system, WHD: 600x2000x600 mm, stainless steel, single door image 6
VX Baying enclosure system, WHD: 600x2000x600 mm, stainless steel, single door thumbnail 1
VX Baying enclosure system, WHD: 600x2000x600 mm, stainless steel, single door thumbnail 2
VX Baying enclosure system, WHD: 600x2000x600 mm, stainless steel, single door thumbnail 3
VX Baying enclosure system, WHD: 600x2000x600 mm, stainless steel, single door thumbnail 4
VX Baying enclosure system, WHD: 600x2000x600 mm, stainless steel, single door thumbnail 5
VX Baying enclosure system, WHD: 600x2000x600 mm, stainless steel, single door thumbnail 6
Rittal

VX Baying enclosure system, WHD: 600x2000x600 mm, stainless steel, single door

Order only
Price (excl. VAT):
2 726,78 € per pcs
This price is valid until 24.12.26
EAN: 4028177920217
MPN: 8452000
Package: 1
Pallet: 2
Estimate delivery time to our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name VX Baying enclosure system, WHD: 600x2000x600 mm, stainless steel, single door
Brand Rittal
Categories Electrical Enclosures
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 9403 2080 00
Degree of protection (IP) IP55
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 531 W
Max. permissible load of the enclosure according to IEC 62208 15000 N
Max. permissible load of the door(s) according to IEC 62208 900 N

Packing details

Packing level 1 4028177920217
Packing level 2 4028177920217

Other Technical data

Colour Stainless steel
Width 600 mm
Height 2000 mm
Depth 600 mm
With mounting plate Yes
Number of doors 1
Number of locks 1
Suitable for wall mounting No
EMC-version No
With glazed door No
Connectable Yes
Material quality Stainless steel V2A
Material Stainless steel
Impact strength IK10
Suitable for outdoor set-up Yes
Suitable for metrical mounting No
Mounting plate depth-adjustable Yes
With ventilation door No
Surface finishing Other
With rear door No
Suitable for wall built-in No
Pitched roof No
Pole fastening No
Degree of protection (NEMA) 12
Max. permissible load of the mounting plate according to IEC 62208 5000 N
Floor standing wall model Yes
Detached Yes
Corner model Yes
Intermediate mounting Yes

Description

VX Anreih-Schranksystem, Edelstahl

Accessories

In vendor's stock

Rittal PS Wiring plan pockets, for TS, CM, SE, PC, TP pedestal, sheet steel

27,35 € per pcs
This price is valid until 24.12.26
EAN: 4028177091818
MPN: 4116000
Package: 1
Pallet: 84
EDT to our warehouse (approx.): 4-6 weeks
In vendor's stock

Rittal TS Mounting plate infill, for TS, H: 2000 mm

64,41 € per pcs
This price is valid until 24.12.26
EAN: 4028177103665
MPN: 4591700
Package: 1
Pallet: 90
EDT to our warehouse (approx.): 4-6 weeks
Order only

Rittal TS Support strip, for TS, SE, CM, TP

100,44 € per set
This price is valid until 24.12.26
Price per pcs: 5,022 € Qty in SET: 20
EAN: 4028177108158
MPN: 4696000
Package: 1
Box: 20
Pallet: 1800
EDT to our warehouse (approx.): 4-6 weeks
In vendor's stock

Rittal SZ C rail 30/15 to EN 60 715, for TS, SE, for W/D: 600 mm, L: 555 mm

54,69 € per set
This price is valid until 24.12.26
Price per pcs: 9,115 € Qty in SET: 6
EAN: 4028177114593
MPN: 4944000
Package: 1
Box: 6
Pallet: 1080
EDT to our warehouse (approx.): 4-6 weeks
Order only

Rittal CM Wiring plan pockets, for TS, CM, SE, PC, TP pedestal, sheet steel

25,01 € per pcs
This price is valid until 24.12.26
EAN: 4028177526310
MPN: 4116500
Package: 1
Pallet: 175
EDT to our warehouse (approx.): 4-6 weeks
Order only

Rittal SZ Eyebolt, for TS, SE, Stainless steel 1.4301

46,27 € per set
This price is valid until 24.12.26
Price per pcs: 11,568 € Qty in SET: 4
EAN: 4028177690325
MPN: 4568500
Package: 1
Box: 4
Pallet: 2200
EDT to our warehouse (approx.): 4-6 weeks
Order only

Rittal VX Metal multi-tooth screw, for stainless steel

53,40 € per set
This price is valid until 24.12.26
Price per pcs: 0,178 € Qty in SET: 300
EAN: 4028177919266
MPN: 2486400
Package: 1
Box: 300
Pallet: 9000
EDT to our warehouse (approx.): 4-6 weeks
Order only

Rittal VX Punched section 23 x 89 mm, for W/D: 600 mm, stainless steel

81,52 € per set
This price is valid until 24.12.26
Price per pcs: 40,76 € Qty in SET: 2
EAN: 4028177924611
MPN: 8100732
Package: 1
Box: 2
Pallet: 300
EDT to our warehouse (approx.): 4-6 weeks
Order only

Rittal VX Levelling feet, stainless steel

101,74 € per set
This price is valid until 24.12.26
Price per pcs: 25,435 € Qty in SET: 4
EAN: 4028177927094
MPN: 8100780
Package: 1
Box: 4
Pallet: 960
EDT to our warehouse (approx.): 4-6 weeks
Order only

Rittal AS multitool AX/VX

32,53 € per pcs
This price is valid until 24.12.26
EAN: 4028177957572
MPN: 4052000
Package: 1
Pallet: 672
EDT to our warehouse (approx.): 4-6 weeks

Others

Order only

Rittal LED system light 400, 100-240 V, L: 262 mm

64,28 € per pcs
This price is valid until 24.12.26
EAN: 4028177806931
MPN: 2500100
Package: 1
Box: 15
Pallet: 480
EDT to our warehouse (approx.): 4-6 weeks
Order only

Rittal SZ System Light LED, 600 Lumen, L: 337 mm, 100-240 V

69,47 € per pcs
This price is valid until 24.12.26
EAN: 4028177806948
MPN: 2500110
Package: 1
Box: 15
Pallet: 480
EDT to our warehouse (approx.): 4-6 weeks
In vendor's stock

Rittal SZ System Light LED, 900 Lumen, L: 437 mm, 100-240 V

129,34 € per pcs
This price is valid until 24.12.26
EAN: 4028177806955
MPN: 2500200
Package: 1
Box: 8
Pallet: 192
EDT to our warehouse (approx.): 4-6 weeks
In vendor's stock

Rittal SZ System Light LED, 900 Lumen, L: 437 mm, 100-240 V, with earthing-pin socket

134,14 € per pcs
This price is valid until 24.12.26
EAN: 4028177806962
MPN: 2500210
Package: 1
Box: 8
Pallet: 192
EDT to our warehouse (approx.): 4-6 weeks
Order only

Rittal SZ System Light LED, 900 Lumen, L: 437 mm, 24 V DC

129,34 € per pcs
This price is valid until 24.12.26
EAN: 4028177806979
MPN: 2500220
Package: 1
Box: 8
Pallet: 192
EDT to our warehouse (approx.): 4-6 weeks
Order only

Rittal System Light LED, 1200 lm, L: 437 mm, 100-240 V, with integral motion detector

209,30 € per pcs
This price is valid until 24.12.26
EAN: 4028177809864
MPN: 2500300
Package: 1
Box: 8
Pallet: 128
EDT to our warehouse (approx.): 4-6 weeks
Order only

Rittal System Light LED, 900 Lumen, L: 437 mm, 100-125 V, socket version US

134,14 € per pcs
This price is valid until 24.12.26
EAN: 4028177811324
MPN: 2500214
Package: 1
Box: 8
Pallet: 192
EDT to our warehouse (approx.): 4-6 weeks
Order only

Rittal System Light LED, 900 Lumen, L: 437 mm, 100-240 V, socket version CH

134,14 € per pcs
This price is valid until 24.12.26
EAN: 4028177811331
MPN: 2500213
Package: 1
Box: 8
Pallet: 192
EDT to our warehouse (approx.): 4-6 weeks
Order only

Rittal System Light LED, 900 Lumen, L: 437 mm, 100-240 V, socket version FR/BE

134,14 € per pcs
This price is valid until 24.12.26
EAN: 4028177811348
MPN: 2500212
Package: 1
Box: 8
Pallet: 192
EDT to our warehouse (approx.): 4-6 weeks
Order only

Rittal System Light LED, 900 Lumen, L: 437 mm, 100-240 V, socket version UK

134,14 € per pcs
This price is valid until 24.12.26
EAN: 4028177811355
MPN: 2500211
Package: 1
Box: 8
Pallet: 192
EDT to our warehouse (approx.): 4-6 weeks
