Register to unlock your exclusive B2B prices and start shopping. Sign up now!
VX Baying enclosure system, WHD: 600x2000x600 mm, single door image 1
VX Baying enclosure system, WHD: 600x2000x600 mm, single door image 2
VX Baying enclosure system, WHD: 600x2000x600 mm, single door image 3
VX Baying enclosure system, WHD: 600x2000x600 mm, single door image 4
VX Baying enclosure system, WHD: 600x2000x600 mm, single door image 5
VX Baying enclosure system, WHD: 600x2000x600 mm, single door image 6
VX Baying enclosure system, WHD: 600x2000x600 mm, single door thumbnail 1
VX Baying enclosure system, WHD: 600x2000x600 mm, single door thumbnail 2
VX Baying enclosure system, WHD: 600x2000x600 mm, single door thumbnail 3
VX Baying enclosure system, WHD: 600x2000x600 mm, single door thumbnail 4
VX Baying enclosure system, WHD: 600x2000x600 mm, single door thumbnail 5
VX Baying enclosure system, WHD: 600x2000x600 mm, single door thumbnail 6
Rittal

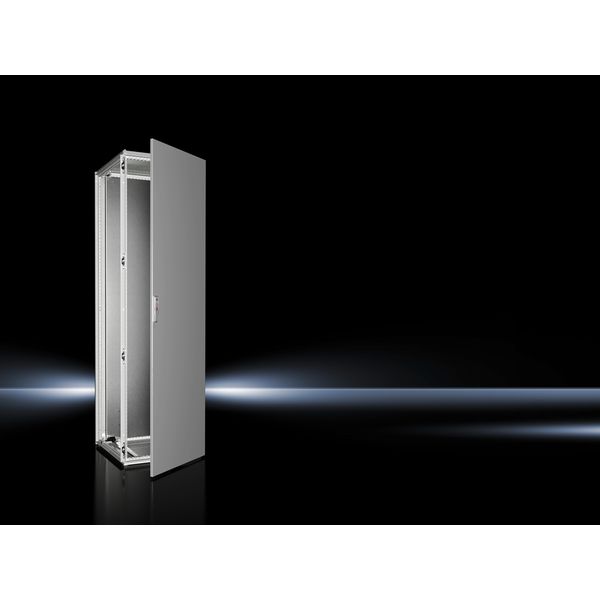

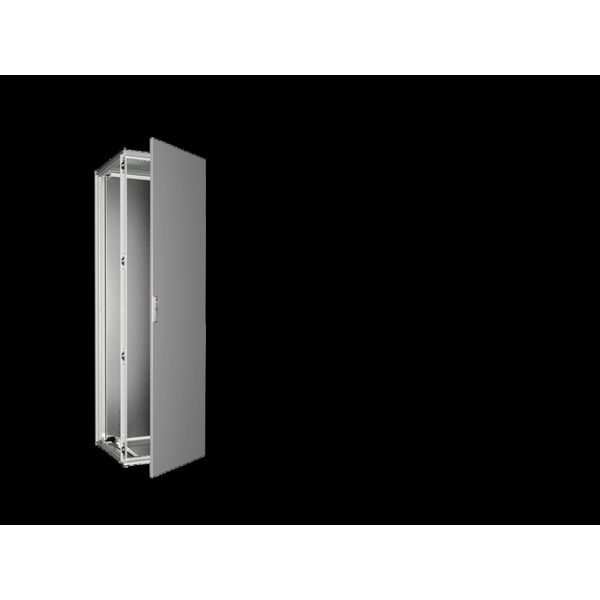

VX Baying enclosure system, WHD: 600x2000x600 mm, single door

In vendor's stock
Price (excl. VAT):
672,62 € per pcs
This price is valid until 24.12.26
EAN: 4028177813731
MPN: 8606000
Package: 1
Pallet: 2
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name VX Baying enclosure system, WHD: 600x2000x600 mm, single door
Brand Rittal
Categories Electrical Enclosures
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 9403 2080 00
Degree of protection (IP) IP55
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 531 W
Max. permissible load of the enclosure according to IEC 62208 15000 N
Max. permissible load of the door(s) according to IEC 62208 900 N

Packing details

Packing level 1 4028177813731
Packing level 2 4028177813731

Other Technical data

Colour Grey
Width 600 mm
Height 2000 mm
Depth 600 mm
RAL-number 7035
With mounting plate Yes
Number of doors 1
Number of locks 1
Suitable for wall mounting No
EMC-version No
With glazed door No
Connectable Yes
Material quality Other
Material Steel
Impact strength IK10
Suitable for outdoor set-up No
Suitable for metrical mounting No
Mounting plate depth-adjustable Yes
With ventilation door No
Surface finishing Powder coating
With rear door No
Suitable for wall built-in No
Pitched roof No
Pole fastening No
Degree of protection (NEMA) 12
Max. permissible load of the mounting plate according to IEC 62208 5000 N
Floor standing wall model Yes
Detached Yes
Corner model Yes
Intermediate mounting Yes

Description

VX Anreih-Schranksystem
