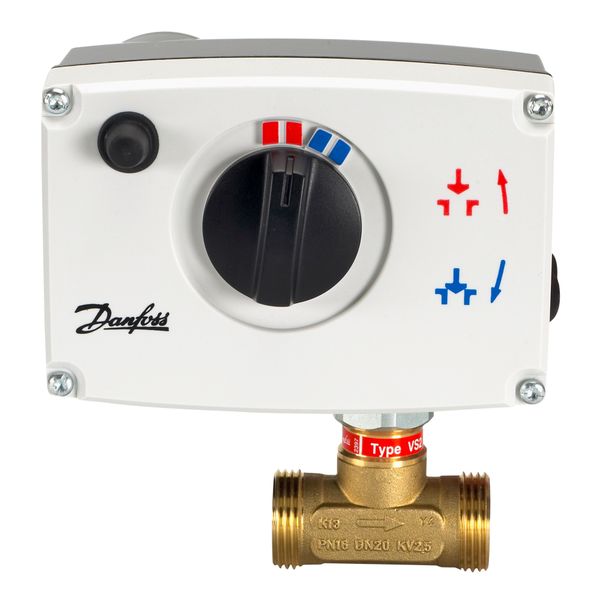

VS2 20/2.5
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
113,52 €
EAN: 5702421510247
MPN: 065F2120
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | VS2 20/2.5 |
| Brand | Danfoss |
| Categories |
Control Valves and Actuators
|
| Country of origin | DK |
| Harmonized System Code | 8481 8079 00 |
| Connection 1 | External thread metric |
| Connection 2 | External thread metric |
| Material quality | Dezincification resistant brass (DZR) |
| Article compression class | PN 16 |
| Flange compression class | PN 16 |
Packing details
| Packing level 1 | 5702421510247 |
Other Technical data
| With flow measuring point | No |
| Automatic flow control | No |
| Suitable for process water | No |
| Max. medium temperature (continuous) | 130 °C |
| Nominal diameter connection 2 | DN 20 |
| Min. medium temperature (continuous) | 2 °C |
| Outer pipe diameter connection 1 | 20 mm |
| Outer pipe diameter connection 2 | 20 mm |
| Length of connection 1 | 0 mm |
| Length of connection 2 | 0 mm |
| Working length connection 1 | 0 mm |
| Working length connection 2 | 0 mm |
| Min. pressure difference | 0 bar |
| Shaft height | 0 mm |
| Suitable for tap water | No |
| Stroke length | 5 mm |
| With coupling connection 1 | Yes |
| With coupling connection 2 | Yes |
| Kvs value | 2.5 |
| Nominal diameter connection 1 | DN 20 |
| Max. pressure difference in opened position | 10 bar |
| Leakage loss of Kvs value | 0.05 % |
| Control ratio (Svo) | 0 % |
| Suitable for heating | No |
| Suitable for cooling | No |
| DVGW quality mark | No |
| DIN-CERTCO certificate | No |
| Tested according to TÜV GS | No |
