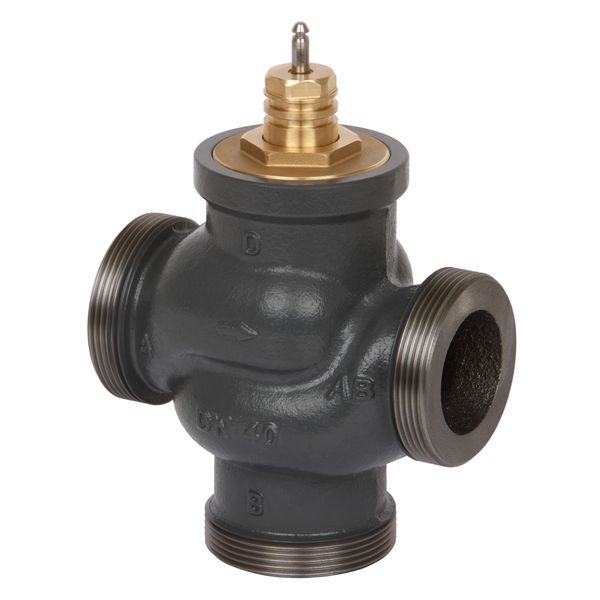

VRG3 3-way valve PN16 DN15/2.5 Male thread
Order only
Price (excl. VAT):
119,32 €
EAN: 5702421559864
MPN: 065Z0114
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | VRG3 3-way valve PN16 DN15/2.5 Male thread |
| Brand | Danfoss |
| Categories |
Control Valves and Actuators
|
| Country of origin* | DK |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8481 8059 00 |
| Material quality | Cast iron GG 25 (GJL-250) |
| Nominal diameter | DN 15 |
| Max. pressure difference in opened position | 1 bar |
Packing details
| Packing level 1 | 5702421559864 |
Other Technical data
| Width | 0 mm |
| Height | 0 mm |
| Depth | 0 mm |
| Suitable for manual operation | No |
| Explosion-proof | No |
| Article compression class | PN 16 |
| Max. medium temperature (continuous) | 130 °C |
| Min. medium temperature (continuous) | -10 °C |
| Outer pipe diameter all connections | 15 mm |
| With coupling connection 3 | Yes |
| Flange compression class | PN 16 |
| Length of connection 1 | 0 mm |
| Length of connection 2 | 0 mm |
| Working length connection 1 | 0 mm |
| Working length connection 2 | 0 mm |
| Length of connection 3 | 0 mm |
| Working length connection 3 | 0 mm |
| Operating time | 0 s |
| With coupling connection 1 | Yes |
| With coupling connection 2 | Yes |
| Housing material | Cast iron |
| Kvs value | 2.5 |
| With end contacts | No |
| Max. electric power input | 0 VA |
| Adjustable operating range | No |
| Auxiliary contacts | No |
| Leakage loss of Kvs value | 0 % |
| Control ratio (Svo) | 2 % |
| Closing pressure | 0 bar |
| KVS value for bypass | 0 |
| Leakage loss of KVS value for bypass | 0 % |
| Installation method, distributive | No |
| Adjustable position feedback signal | No |
