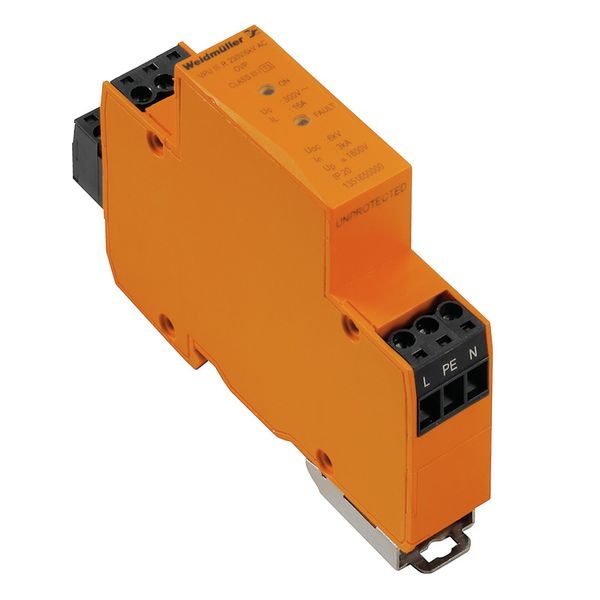

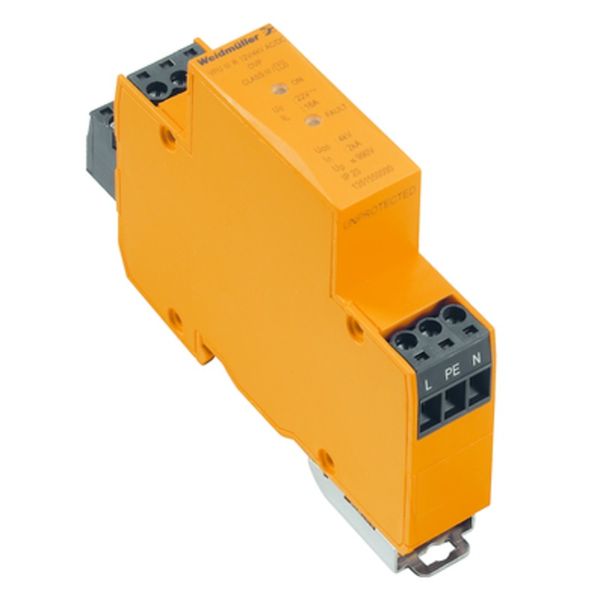

Surge voltage arrester, Low voltage, with remote contact, Single-phase
Order only
Price (excl. VAT):
47,29 €
EAN: 4050118158571
MPN: 1351550000
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Surge voltage arrester, Low voltage, with remote contact, Single-phase |
| Brand | Weidmüller |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin* | SI |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3010 00 |
| Nominal voltage AC | 12 V |
| Nominal voltage DC | 16 V |
| Degree of protection (IP) | IP20 |
| Max. PV-voltage | 28 V |
| System configuration DC | Yes |
| System configuration IT | No |
| System configuration TN | No |
| System configuration TN-C-S | No |
Packing details
| Packing level 1 | 4050118158571 |
Other Technical data
| Mounting method | DIN rail (top hat rail) 35 mm |
| With remote signalling contact | Yes |
| Number of conductors (without earthing) | 1 |
| Construction size | 1 modular spacing |
| Max. continuous voltage AC | 20 V |
| Category type 2 | No |
| Signalling at the device | Optic |
| Max. continuous voltage DC | 28 V |
| Integrated backup fuse | No |
| Max. conductor cross section solid (solid, stranded) | 2.5 mm² |
| Max. conductor cross section flexible (fine-strand) | 2.5 mm² |
| System configuration TN-C | No |
| System configuration TN-S | No |
| System configuration TT | No |
| System configuration other | Yes |
| Short-circuit breaking capacity (Isccr) | 1.5 kA |
| Integrated short-circuit protection | Yes |
Description
Device for surge protection in energy engineering and power supply. The device should be installed close to the feed-in of the system to be protected.
