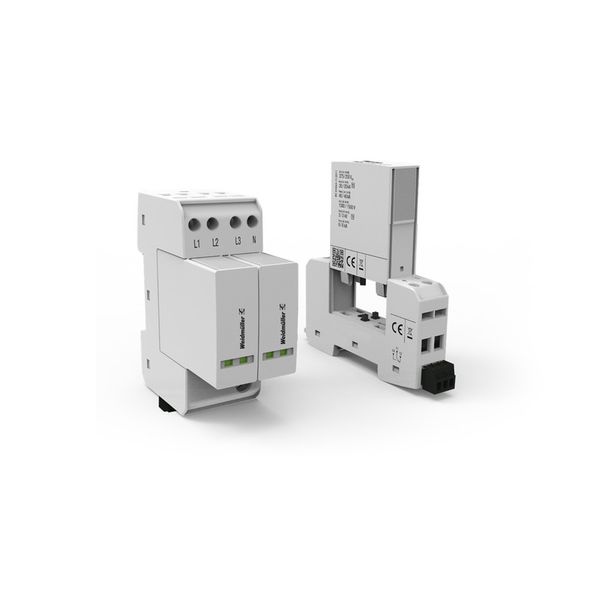

VPU AC II+III 3+1 440/20 S
Order only
Price (excl. VAT):
101,00 €
EAN: 4099986190931
MPN: 2908520000
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | VPU AC II+III 3+1 440/20 S |
| Brand | Weidmüller |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3090 00 |
| Nominal discharge surge current (8/20) | 10 kA |
| Nominal voltage AC | 230 V |
| Degree of protection (IP) | IP20 |
| System configuration DC | No |
| System configuration IT | No |
| System configuration TN | Yes |
| System configuration TN-C-S | Yes |
Packing details
| Packing level 1 | 4099986190931 |
Other Technical data
| Mounting method | DIN rail (top hat rail) 35 mm |
| Number of conductors (without earthing) | 4 |
| Construction size | 2 modular spacing |
| Max. continuous voltage AC | 440 V |
| Category type 2 | Yes |
| Signalling at the device | Optic |
| Integrated backup fuse | No |
| Max. conductor cross section solid (solid, stranded) | 10 mm² |
| Max. conductor cross section flexible (fine-strand) | 6 mm² |
| System configuration TN-C | Yes |
| System configuration TN-S | Yes |
| System configuration TT | Yes |
| Max. discharge surge current (8/20) | 10 kA |
| Short-circuit breaking capacity (Isccr) | 25 kA |
| Integrated short-circuit protection | Yes |
Description
Device for surge protection in energy engineering and power supply. The device should be installed close to the feed-in of the system to be protected.
