VOYAGER STYLE 150 CON E3 S WH - Escape sign luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 9010757133471
MPN: 96636580
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | VOYAGER STYLE 150 CON E3 S WH - Escape sign luminaire |
| Brand | Thorn |
| Categories |
Emergency luminaires
|
| Country of origin | DE |
| Harmonized System Code | 9405 4231 00 |

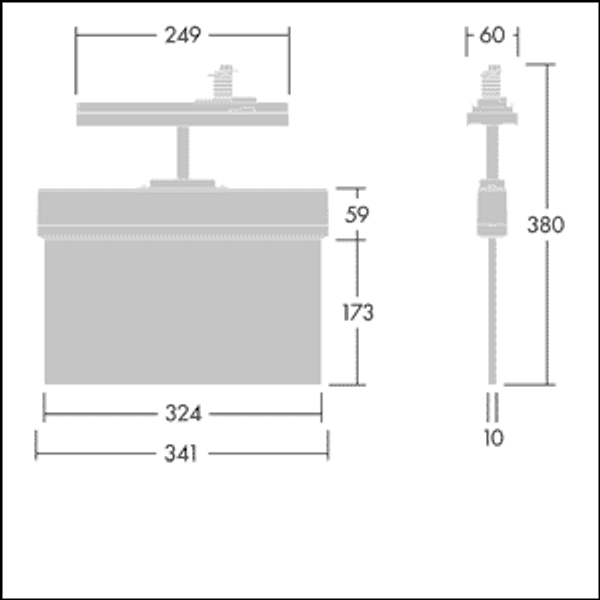

| Width | 37 mm |
| Length | 341 mm |
| Height/depth | 334 mm |
| Impact strength | IK03 |
| Degree of protection (IP) | IP20 |
| Max. system power | 7.2 W |
Packing details
| Packing level 1 | 9010757133471, 9010757133471 |
Other Technical data
| Mounting method | Surface mounting/recessed mounting |
| Protection class | I |
| With remote control | No |
| Built-in width | 0 mm |
| Built-in length | 0 mm |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Constant light output (CLO) | No |
| With pictogram | No |
| Rated ambient temperature according to IEC62722-2-1 | 0-35 °C |
| Exchangeable control gear | No |
| Built-in height/depth | 0 mm |
Downloads
Description
Ultra slim LED escape sign luminaire; Self contained luminaire, manual test (3 hours); non-maintained and maintained mode possible; display of luminaire status via status LED; housing made of polycarbonate ; luminaire easy to install; supplied with a set of ISO 7010 mountable direction signs (left, right, up, down and blank) for viewing from a maximum distance of 30 m; mounting of signs with discrete mounting pins; zero maintenance thanks to LED technology; service life of 50,000 h at constant luminous flux; uniform backlighting of pictogram; luminance > 500 cd/m² in the white region; Power supply: 220/240 V AC; Luminaire input power: 7.2 W; degree of protection: IP20, class of protection: Class II electrical; Impact strength: Impact strength: IK03; Dimensions: 341 x 37 x 334 mm; weight: 1.18 kg
Self-contained emergency luminaires rely on long-lasting batteries. Thorn batteries are robust and comes with a three-year guarantee (applicable subject to the terms and conditions of and to the extent as set forth in the manufacturer's guarantee on Thorn products, which shall be applicable analogously and which is available under http://www.thornlighting.com/en/products/5-year-guarantee/5-year-warranty/terms-of-guarantee_en.pdf. The battery guarantee shall not come into effect if the product has been installed later than three(3) months after delivery EXW (Incoterms 2010).
