VOYAGER STYLE 115 MS ECC SM-S WH - Escape sign luminaire

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 5037319398400

MPN: 96222361

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	VOYAGER STYLE 115 MS ECC SM-S WH - Escape sign luminaire
Brand	Thorn
Categories	Emergency luminaires
Country of origin	DE
Width	37 mm
Length	265 mm
Height/depth	191 mm
Impact strength	IK03
Degree of protection (IP)	IP43
Max. system power	5 W

Packing details

Packing level 1

5037319398400

Other Technical data

Mounting method	Surface mounting/recessed mounting
Protection class	I
Colour housing	White
With remote control	No
Built-in width	0 mm
Housing material	Plastic
Built-in length	0 mm
With light source	No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	No
Suitable for number of lamps	1
With remote switch connection	No
Constant light output (CLO)	No
With pictogram	No
Exchangeable control gear	No
Built-in height/depth	0 mm

Downloads

Declaration DOC CE (Declaration of conformity CE)

Description

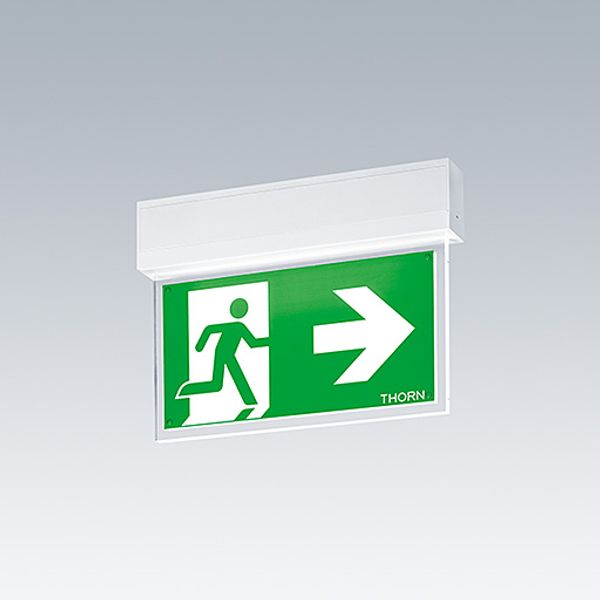

Ultra slim LED escape sign luminaire for surface mounted, wall or ceiling mounting; recessed ceiling mounting possible with optional recessed ceiling frame; Luminaire for central emergency light supply, with circuit monitoring, without single monitoring of the luminaire; ; housing made of polycarbonate ; luminaire easy to install; Quick fit terminal block, through wiring possible up to 2,5 mm²; supplied with a set of ISO 7010 mountable direction signs (left, right, up, down and blank) for viewing from a maximum distance of 23 m; mounting of signs with discrete mounting pins; zero maintenance thanks to LED technology; service life of 50,000 h at constant luminous flux; uniform backlighting of pictogram; luminance > 500 cd/m² in the white region; Power supply: 220/240 V AC; Luminaire input power: 5 W; degree of protection: IP43, class of protection: Class II electrical; Impact strength: Impact strength: IK03; Dimensions: 265 x 37 x 191 mm; weight: 0.85 kg
