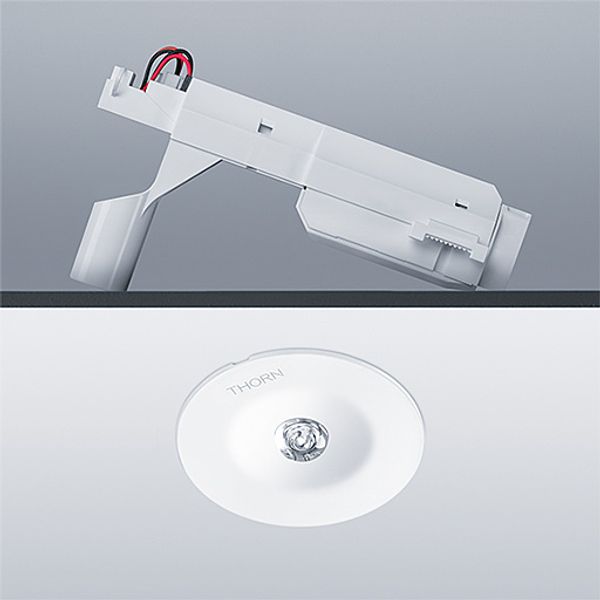

VOYAGER STAR P MRCR ANT ECD WH - Emergency luminaire image 1

VOYAGER STAR P MRCR ANT ECD WH - Emergency luminaire image 2

VOYAGER STAR P MRCR ANT ECD WH - Emergency luminaire image 3

VOYAGER STAR P MRCR ANT ECD WH - Emergency luminaire

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 9010299136985

MPN: 96633208

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	VOYAGER STAR P MRCR ANT ECD WH - Emergency luminaire
Brand	Thorn
Categories	Emergency luminaires
Country of origin	RS
Height/depth	2 mm
Lamp type	LED not exchangeable
Nominal voltage	220-240 V
Degree of protection (IP)	IP20
Max. system power	3.7 W
Rated luminous flux according to IEC 62722-2-1	200 lm

Packing details

Packing level 1

9010299136985

Other Technical data

Mounting method	Built-in
Protection class	II
Outer diameter	85 mm
Lamp holder	None
Voltage type	AC
Type of control gear	LED operating device current-controlled
With remote control	No
Built-in width	0 mm
Built-in length	0 mm
With light source	Yes
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	No
Suitable for number of lamps	1
With remote switch connection	No
Constant light output (CLO)	No
With pictogram	No
Max. number of luminaires per miniature circuit breaker C16	120
Max. number of luminaires per miniature circuit breaker B16	60
Exchangeable control gear	No
Built-in height/depth	125 mm
Power factor	0.46

Downloads

Declaration DOC CE (Declaration of conformity CE)

Description

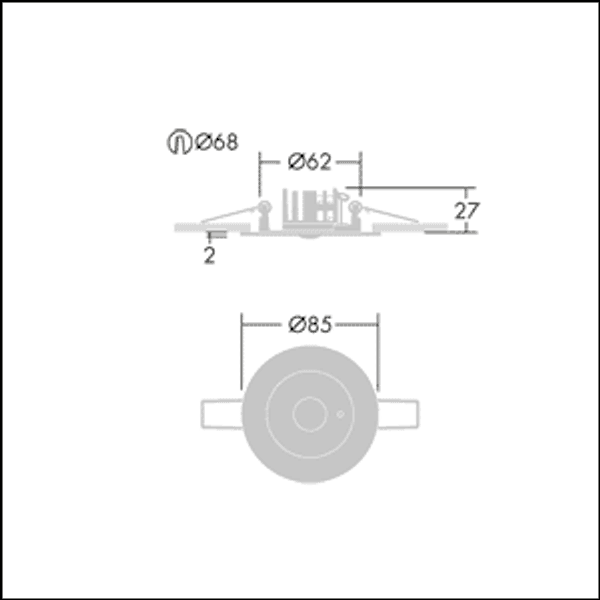

High performance, ceiling recessed LED emergency lighting luminaire, Luminaire for central emergency light supply, for single luminaire monitoring via DALI (DALI-2 certified), settable emergency light level with optic. Luminaire in maintained mode. Housing: die-cast aluminium, powder coated white (close to RAL9016). Gear box for mounting in ceiling recess:. IP20_IP40, Ceiling recessed luminaire for 68 mm ceiling cut-out and ceiling thickness from 1 - 25 mm. Lens: polycarbonate. Luminaire can be installed quickly and maintained without tools. Electrical connection (230VAC) via maximum 2.5mm² cable, loop in - loop out possible. Optimum thermal management via heat sink. Maintained mode: -30°C to +30°C, non-maintained mode: -30°C to +35°C; power supply: 220-240 V AC (+/- 10%) 50-60 Hz; 176-280 V DC Suitable for recessed installation in concrete casting surround (please order separately). Complete with LEDs.. Ceiling cutout Ø68mm in ceiling thicknesses 1-25mm._x000D_ _x000D_ Luminaire input power: 3.7 W_x000D_ Dimensions: Ø85 x 2 mm_x000D_ Weight: 0.45 kg
