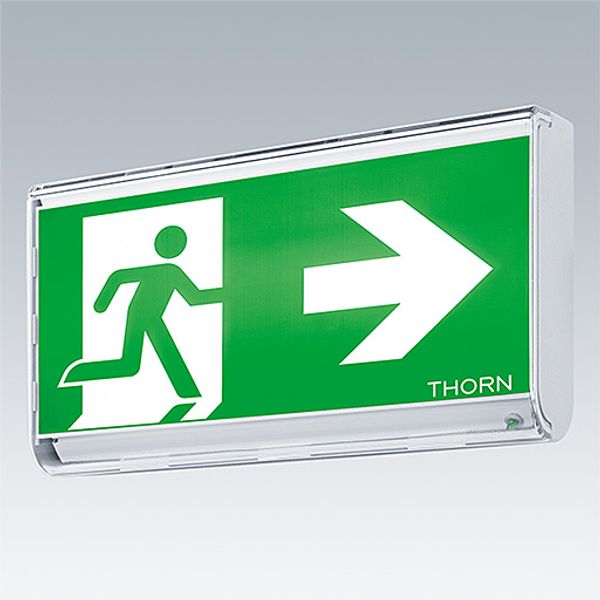

VOYAGER SIGMA LED E3TX SIL - LED emergency luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 5037319017028
MPN: 96233816
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | VOYAGER SIGMA LED E3TX SIL - LED emergency luminaire |
| Brand | Thorn |
| Categories |
Emergency luminaires
|
| Country of origin | GB |
| Width | 65 mm |
| Length | 327 mm |
| Height/depth | 197 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP40 |
| Colour temperature | 5500 K |
| Max. system power | 4 W |
| Rated luminous flux according to IEC 62722-2-1 | 45 lm |
Packing details
| Packing level 1 | 5037319017028 |
Other Technical data
| Mounting method | Wall surface mounted |
| Protection class | I |
| Lamp holder | None |
| Colour housing | Silver |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| With remote control | No |
| Built-in width | 0 mm |
| Housing material | Plastic |
| Built-in length | 0 mm |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Constant light output (CLO) | No |
| With pictogram | No |
| Rated ambient temperature according to IEC62722-2-1 | 5-35 °C |
| Max. number of luminaires per miniature circuit breaker C16 | 260 |
| Max. number of luminaires per miniature circuit breaker B16 | 130 |
| Exchangeable control gear | No |
| Built-in height/depth | 0 mm |
| Power factor | 0.95 |
Downloads
Description
A self-contained, maintained emergency exit sign for 1 x 1W Light Source: LED strip giving 3 hour SelfTest or Addressable Test if connected to Explorer Project/Vision, emergency operation. IP40, Class I electrical. Body in polycarbonate, finished metallic silver. Diffuser in polycarbonate. Can be wall mounted with 20mm conduit or rear back box entry. Legend panels required to be ordered separately in either ISO or EU formats. Complete with LED strip_x000D_
_x000D_
Dimensions: 327 x 65 x 197 mm_x000D_
Luminaire input power: 4 W_x000D_
Weight: 1.4 kg
