Voyager FIT MSC slim E3D NM WH - LED emergency luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 9010299631534
MPN: 96670381
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Voyager FIT MSC slim E3D NM WH - LED emergency luminaire |
| Brand | Thorn |
| Categories |
Emergency luminaires
|
| Country of origin | GB |
| Harmonized System Code | 9405 6120 00 |
| Width | 123 mm |
| Length | 123 mm |
| Height/depth | 33 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 6500 K |
| Rated luminous flux according to IEC 62722-2-1 | 200 lm |
Packing details
| Packing level 1 | 9010299631534, 9010299631534 |
Other Technical data
| Mounting method | Surface mounting/recessed mounting |
| Protection class | II |
| Lamp holder | None |
| Colour housing | White |
| Voltage type | AC |
| With remote control | No |
| Built-in width | 0 mm |
| Housing material | Plastic |
| Built-in length | 0 mm |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Constant light output (CLO) | No |
| With pictogram | No |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Exchangeable control gear | No |
| Built-in height/depth | 0 mm |
Downloads
Description

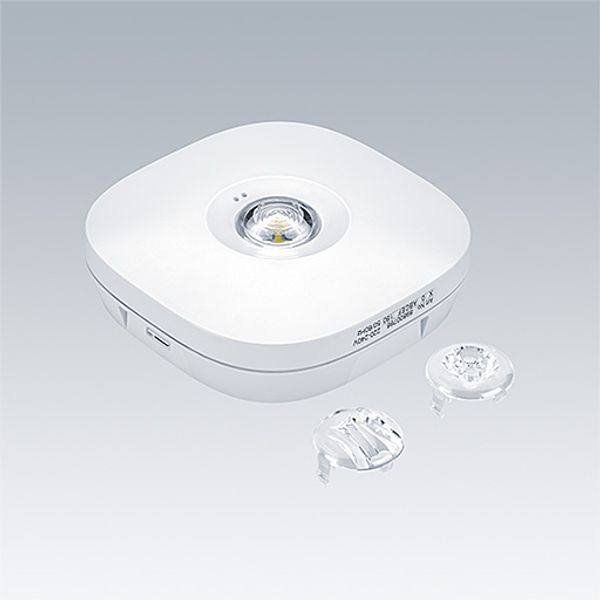

Self contained, surface mounted, non maintained, emergency lighting luminaire with 3 hour, Self/DALI Addressable test, emergency lighting circuit,. Housing: white (close to RAL9016) polycarbonate. Suitable for ceiling surface mounting. Class II electrical, IP20, IK07. Housing 33mm high for back cable entry. Complete with 6500K LED.
Interchangeable optics for anti-panic, escape route and spot applications included.

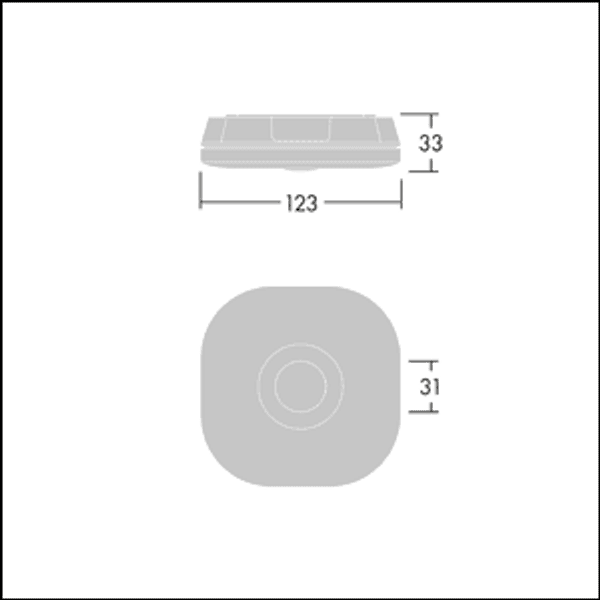

Dimensions: 123 x 123 x 33 mm
Weight: 0.27 kg
Self-contained emergency luminaires rely on long-lasting batteries. Voyager Fit's high-tech lithium iron phosphate battery is robust and comes with a three-year guarantee (applicable subject to the terms and conditions of and to the extent as set forth in the manufacturer's guarantee on Thorn products, which shall be applicable analogously and which is available under http://www.thornlighting.com/en/products/5-year-guarantee/5-year-warranty/terms-of-guarantee_en.pdf. The battery guarantee shall not come into effect if the product has been installed later than three(3) months after delivery EXW (Incoterms 2010).
