VOYAGER FIT MRC E3T NM - LED emergency luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 5037319375814
MPN: 96629567
Package: 1
Pallet: 900
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | VOYAGER FIT MRC E3T NM - LED emergency luminaire |
| Brand | Thorn |
| Categories |
Emergency luminaires
|
| Country of origin | GB |
| Height/depth | 94 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 6500 K |
| Rated luminous flux according to IEC 62722-2-1 | 200 lm |
Packing details
| Packing level 1 | 5037319375814 |
| Packing level 2 | 5037319375814 |
Other Technical data
| Mounting method | Built-in |
| Protection class | II |
| Outer diameter | 51 mm |
| Lamp holder | None |
| Colour housing | White |
| Voltage type | AC |
| With remote control | No |
| Built-in width | 0 mm |
| Housing material | Plastic |
| Built-in length | 0 mm |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Constant light output (CLO) | No |
| With pictogram | No |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Rated ambient temperature according to IEC62722-2-1 | 5-30 °C |
| Max. number of luminaires per miniature circuit breaker C16 | 260 |
| Max. number of luminaires per miniature circuit breaker B16 | 130 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Exchangeable control gear | No |
| Built-in height/depth | 80 mm |
Downloads
Description

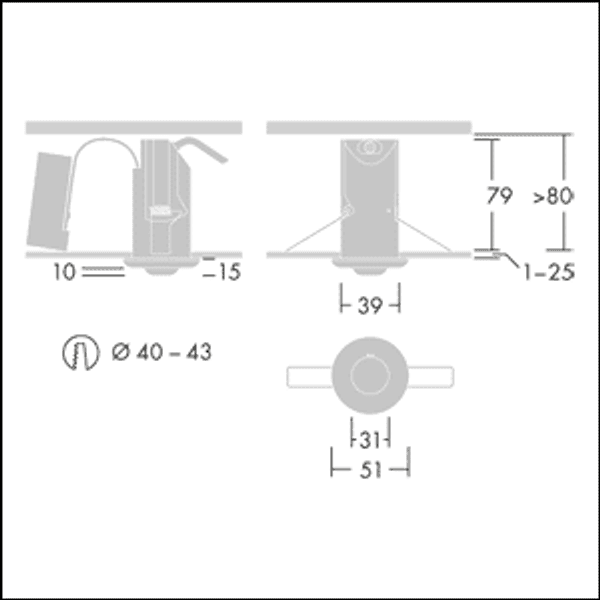

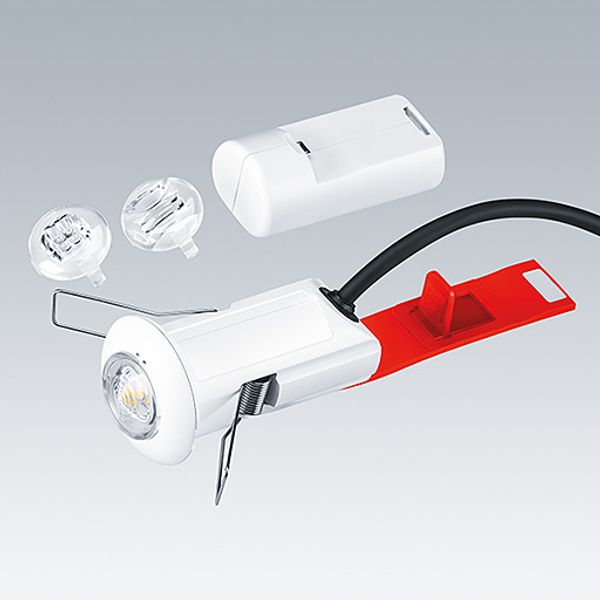

Self contained, ceiling recessed, emergency lighting luminaire with 3 hour, SelfTest, emergency lighting circuit, non-maintained. Housing: white (close to RAL9016) polycarbonate. Battery strap: red rubber incorporating cable. Suitable for mounting into ceiling thicknesses from 1 to 25mm. Class II electrical, IP20, IK03. Ceiling cut-out Ø40mm, void 80mm minimum. Pre-wired with 250mm, low smoke, halogen free 0.75mm² stranded cable with prepared ends. Complete with 6500K LED._x000D_
_x000D_
Interchangeable optics for anti-panic, escape route and spot applications included._x000D_
_x000D_
_x000D_
Dimensions: Ø51 x 94 mm_x000D_
Weight: 0.23 kg_x000D_
_x000D_
Self-contained emergency luminaires rely on long-lasting batteries. Voyager Fit's high-tech lithium iron phosphate battery is robust and comes with a three-year guarantee (applicable subject to the terms and conditions of and to the extent as set forth in the manufacturer's guarantee on Thorn products, which shall be applicable analogously and which is available under http://www.thornlighting.com/en/products/5-year-guarantee/5-year-warranty/terms-of-guarantee_en.pdf. The battery guarantee shall not come into effect if the product has been installed later than three(3) months after delivery EXW (Incoterms 2010).
