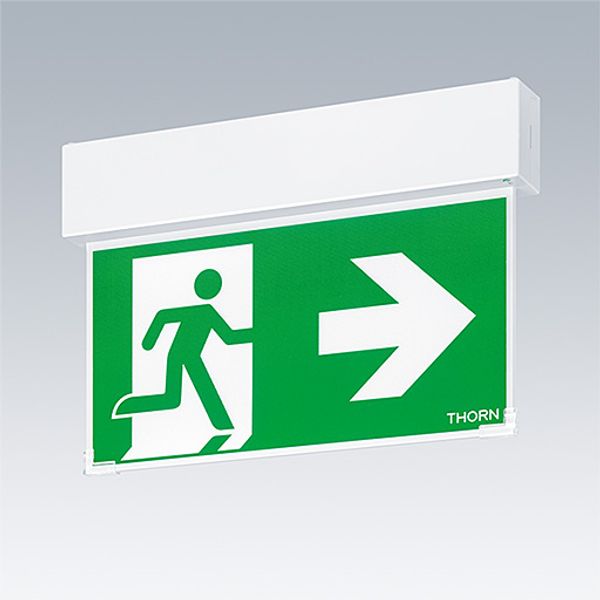

VOYAGER BLADE 2 150 MS ECD WH - LED emergency exit blade

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 9010757106574

MPN: 96637568

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	VOYAGER BLADE 2 150 MS ECD WH - LED emergency exit blade
Brand	Thorn
Categories	Emergency luminaires
Country of origin	TR
Harmonized System Code	9405 6120 00
Width	45 mm
Length	330 mm
Height/depth	225 mm
Impact strength	IK03
Nominal voltage	220-240 V
Degree of protection (IP)	IP40
Max. system power	2.7 W

Packing details

Packing level 1

9010757106574, 9010757106574

Other Technical data

Mounting method	Surface mounting/recessed mounting
Protection class	II
Colour housing	White
Voltage type	AC
With remote control	No
Built-in width	0 mm
Housing material	Plastic
Built-in length	0 mm
With light source	No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	No
Suitable for number of lamps	1
With remote switch connection	No
Constant light output (CLO)	No
With pictogram	No
Rated ambient temperature according to IEC62722-2-1	0-40 °C
Exchangeable control gear	Yes
Built-in height/depth	0 mm

Downloads

Declaration DOC CE (Declaration of conformity CE)

Description

LED Escape sign luminaire for surface, wall or ceiling mounting; Luminaire for central emergency light supply, for single luminaire monitoring via DALI (DALI-2 certified), Addressing and Non-maintained/maintained mode setting possible via the central battery DALI system, maintained mode as default. , housing made of polycarbonate white (RAL 9016), injection moulded; luminaire easy to install; Quick fit terminal block, through wiring possible up to 2,5 mm²; supplied with a set of ISO 7010 mountable direction signs (left, right, up, down and blank) for viewing from a maximum distance of 30 m; zero maintenance thanks to LED technology; service life of 50,000 h at constant luminous flux; uniform backlighting of pictogram; luminance > 500 cd/m² in the white region acc DIN4844. Power supply: 220/240 V AC (+/- 10%) 50/60Hz; 176-276 V DC; Luminaire input power: 2.7 W; degree of protection: IP40, class of protection: Class II electrical; Impact strength: IK03; ambient temperature: 0°C to +40°C dimensions of luminaire including escape sign: Dimensions: 330 x 45 x 225 mm; weight: 0.9 kg
