VOYAGER BLADE 2 115 P MS ELP WH - LED emergency exit blade

Order only

Price (excl. VAT):

279,42 €

This price is valid until 24.12.25

EAN: 9010757106550

MPN: 96637566

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	VOYAGER BLADE 2 115 P MS ELP WH - LED emergency exit blade
Brand	Thorn
Categories	Emergency luminaires
Country of origin	TR
Harmonized System Code	9405 6120 00
Width	45 mm
Length	330 mm
Height/depth	190 mm
Impact strength	IK03
Degree of protection (IP)	IP40
Max. system power	2.3 W

Packing details

Packing level 1

9010757106550, 9010757106550

Other Technical data

Mounting method	Surface mounting/recessed mounting
Protection class	II
Colour housing	White
With remote control	No
Built-in width	0 mm
Housing material	Plastic
Built-in length	0 mm
With light source	No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	No
Suitable for number of lamps	1
With remote switch connection	No
Constant light output (CLO)	No
With pictogram	No
Rated ambient temperature according to IEC62722-2-1	0-40 °C
Exchangeable control gear	Yes
Built-in height/depth	0 mm

Downloads

Declaration DOC CE (Declaration of conformity CE)

Description

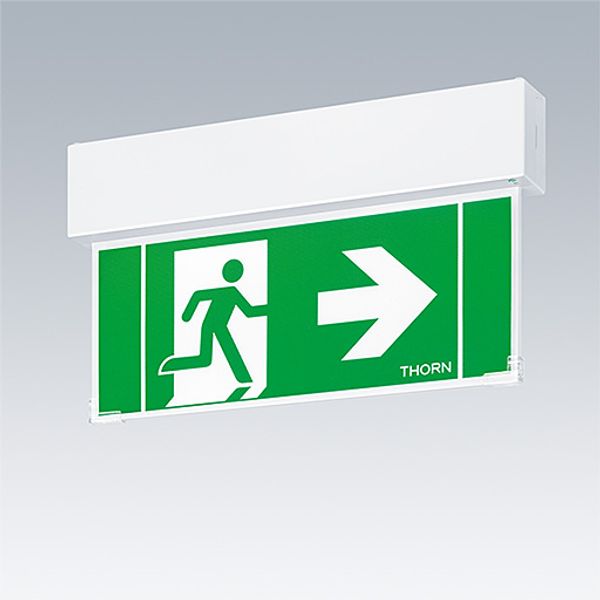

LED Escape sign luminaire for surface, wall or ceiling mounting; Luminaire for central emergency light supply, for single luminaire monitoring via Powerline in connection with the nBox system, Addressing and Non-maintained/maintained mode setting possible via nBox system, maintained mode as default. , housing made of polycarbonate white (RAL 9016), injection moulded; luminaire easy to install; Quick fit terminal block, through wiring possible up to 2,5 mm²; supplied with a set of ISO 7010 mountable direction signs (left, right, up, down and blank) for viewing from a maximum distance of 23 m; zero maintenance thanks to LED technology; service life of 50,000 h at constant luminous flux; uniform backlighting of pictogram; luminance > 500 cd/m² in the white region acc DIN4844. Power supply: 48 V DC (FELV); Luminaire input power: 2.3 W; degree of protection: IP40, class of protection: Class II electrical; Impact strength: IK03; ambient temperature: 0°C to +40°C dimensions of luminaire including escape sign: Dimensions: 330 x 45 x 190 mm; weight: 0.8 kg
