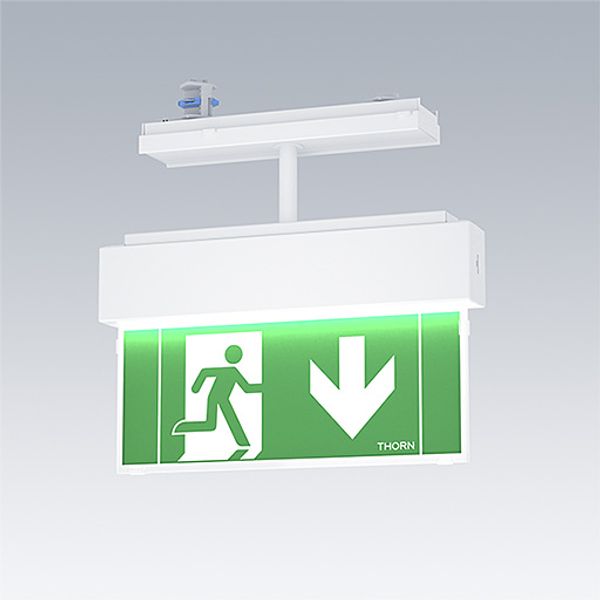

VOYAGER BLADE 2 115 P CON ELP WH - LED emergency exit blade
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 9010757148925
MPN: 96636562
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | VOYAGER BLADE 2 115 P CON ELP WH - LED emergency exit blade |
| Brand | Thorn |
| Categories |
Emergency luminaires
|
| Country of origin | TR |
| Harmonized System Code | 9405 6120 00 |
| Width | 45 mm |
| Length | 330 mm |
| Height/depth | 340 mm |
| Impact strength | IK03 |
| Degree of protection (IP) | IP20 |
| Max. system power | 2.3 W |
Packing details
| Packing level 1 | 9010757148925, 9010757148925 |
Other Technical data
| Mounting method | Surface mounting/recessed mounting |
| Protection class | II |
| Colour housing | White |
| With remote control | No |
| Built-in width | 0 mm |
| Housing material | Plastic |
| Built-in length | 0 mm |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Constant light output (CLO) | No |
| With pictogram | No |
| Rated ambient temperature according to IEC62722-2-1 | 0-40 °C |
| Exchangeable control gear | Yes |
| Built-in height/depth | 0 mm |
Downloads
Description

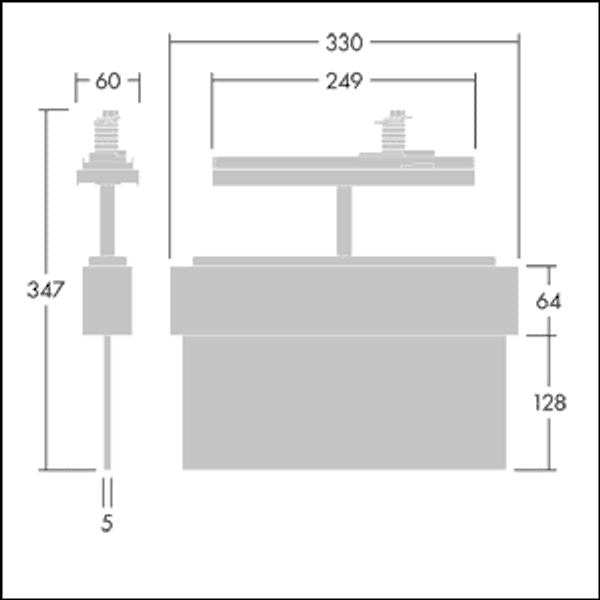

LED Escape sign luminaire; Luminaire for central emergency light supply, for single luminaire monitoring via Powerline in connection with the nBox system, Addressing and Non-maintained/maintained mode setting possible via nBox system, maintained mode as default. , housing made of polycarbonate white (RAL 9016), injection moulded; luminaire easy to install; supplied with a set of ISO 7010 mountable direction signs (left, right, up, down and blank) for viewing from a maximum distance of 23 m; zero maintenance thanks to LED technology; service life of 50,000 h at constant luminous flux; uniform backlighting of pictogram; luminance > 500 cd/m² in the white region acc DIN4844. Power supply: 48 V DC (FELV); Luminaire input power: 2.3 W; degree of protection: IP20, class of protection: Class II electrical; Impact strength: IK03; ambient temperature: 0°C to +40°C dimensions of luminaire including escape sign: Dimensions: 330 x 45 x 340 mm; weight: 1.05 kg
