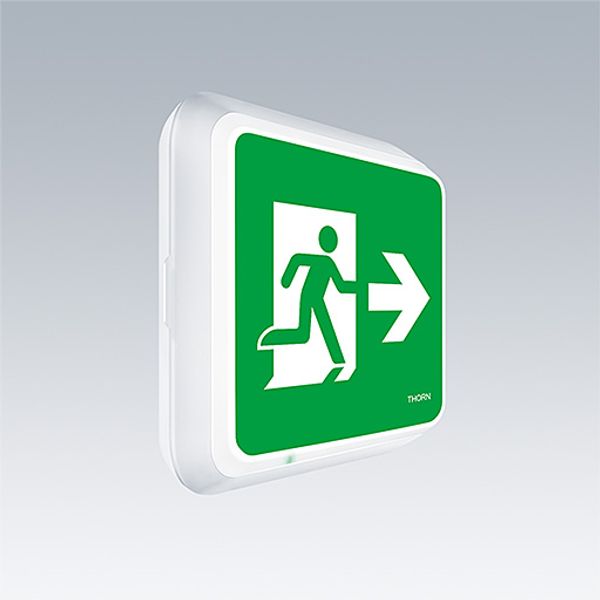

Voy Square 220 P MSW ECD WH SP1-E002-R - LED emergency exit sign
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 9010299395191
MPN: 96635071
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Voy Square 220 P MSW ECD WH SP1-E002-R - LED emergency exit sign |
| Brand | Thorn |
| Categories |
Emergency luminaires
|
| Country of origin | GB |
| Harmonized System Code | 9405 1190 00 |
| Width | 277 mm |
| Length | 277 mm |
| Height/depth | 58 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Max. system power | 5 W |
| Rated luminous flux according to IEC 62722-2-1 | 195 lm |
Packing details
| Packing level 1 | 9010299395191, 9010299395191 |
Other Technical data
| Mounting method | Surface mounting/recessed mounting |
| Protection class | II |
| Lamp holder | None |
| Colour housing | White |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| With remote control | No |
| Built-in width | 0 mm |
| Housing material | Plastic |
| Built-in length | 0 mm |
| Material cover | Plastic, opal |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Constant light output (CLO) | No |
| With pictogram | No |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Rated ambient temperature according to IEC62722-2-1 | -30-35 °C |
| Max. number of luminaires per miniature circuit breaker C16 | 120 |
| Max. number of luminaires per miniature circuit breaker B16 | 60 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Exchangeable control gear | No |
| Built-in height/depth | 0 mm |
| Power factor | 0.7 |
Downloads
Description
A slim, square, surface mounted, LED safety sign luminaire. Luminaire for central emergency light supply, for single luminaire monitoring via DALI (DALI-2 certified), settable emergency light level. NFC interface for addressing, configuration and maintenance via PROset Pen (article: 22170290) or PROset app, addressing also alternatively possible visually or via EZ-addressing. Power supply: 220-240 Vac (± 10%), 50/60 Hz; 176-280 Vdc. Body: injection moulded polycarbonate, white (RAL 9016). Diffuser: opal polycarbonate, with glued, printed emergency exit direction arrow (right) pictogram according to ISO 7010. Uniform backlighting of pictogram, luminance > 500 cd/m² in the white region and 200 cd / m² on average in mains mode (according to DIN 4844), 2 cd / m² minimum in emergency mode (according to EN 1838). Recognition distance according to EN 1838: 44m. Class II electrical, IP65, Impact strength: IK10. ambient temperature: -30°C to +35°C. Suitable for direct mounting to wall. Loop-in, loop-out is possible for cables up to 2.5 mm². BESA compatible. Food certificate (to be used in areas with fully packaged food). Luminaire wired with halogen free and silicone free leads. Luminaire with D symbol (for use in environments in which the accumulation of conductive dust on the luminaire can be expected).
