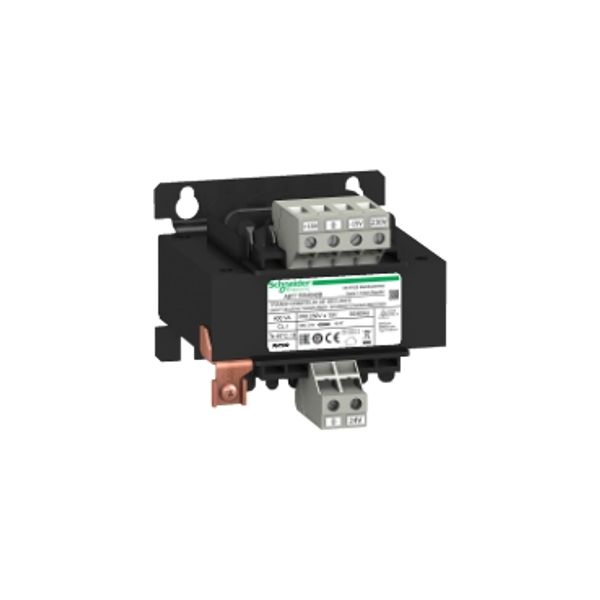

voltage transformer - 230 V - 1 x 24 V - 400 VA
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
106,36 €
EAN: 3389119400824
MPN: ABT7ESM040B
Package: 1
Pallet: 22
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | voltage transformer - 230 V - 1 x 24 V - 400 VA |
| Brand | Schneider Electric |
| Categories |
Low Voltage Transformers
|
| Harmonized System Code | 8504 3180 00 |
| Width | 121 mm |
| Height | 120 mm |
| Depth | 103 mm |
| Conductor material | Other |
| Degree of protection (IP) | IP20 |
| Primary voltage 1 | 230 V |
| Primary voltage 2 | 230 V |
| Built as safety transformer | Yes |
| Built as isolating transformer | Yes |
| Secondary voltage 1 | 24 V |
| Rated apparent power | 400 VA |
Packing details
| Packing level 1 | 3389119400824 |
| Packing level 2 | 3389119400824 |
Other Technical data
| Modular version | No |
| Suitable for mounting on PCB | No |
| Ring core | No |
| Built as energy saving transformer | No |
| Type of insulation material according to IEC 85 | B |
| Short-circuit-proof | No |
| Relative short circuit voltage | 5.5 % |
Downloads
ECOP (Environmental Code of Practice)
Technical manual
Declaration EPD (Environmental Product Declaration)
Declaration DOC CE (Declaration of conformity CE)
Description
This ABT7 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V AC, a rated output voltage of 24V AC and a rated power of 400VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining motor control centers (MCC). It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.
