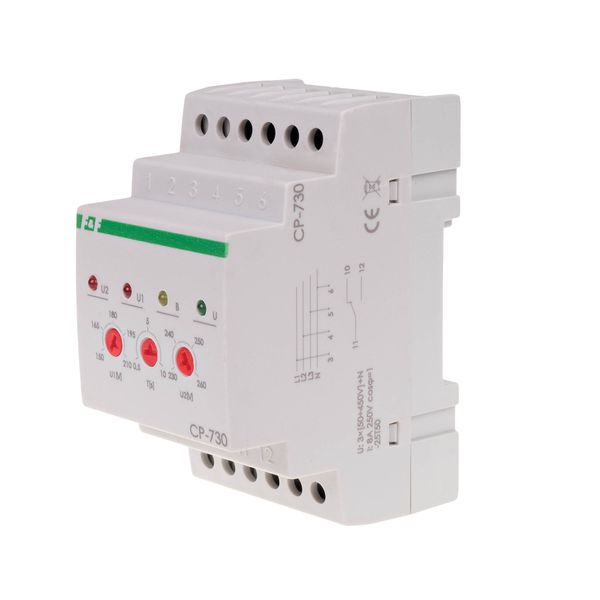

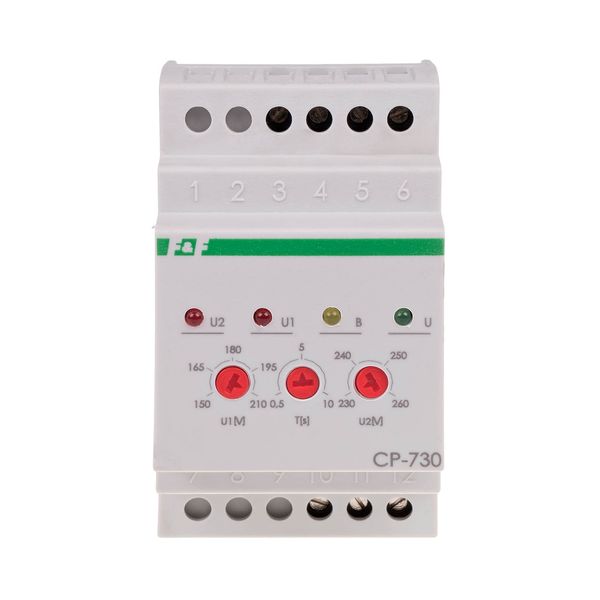

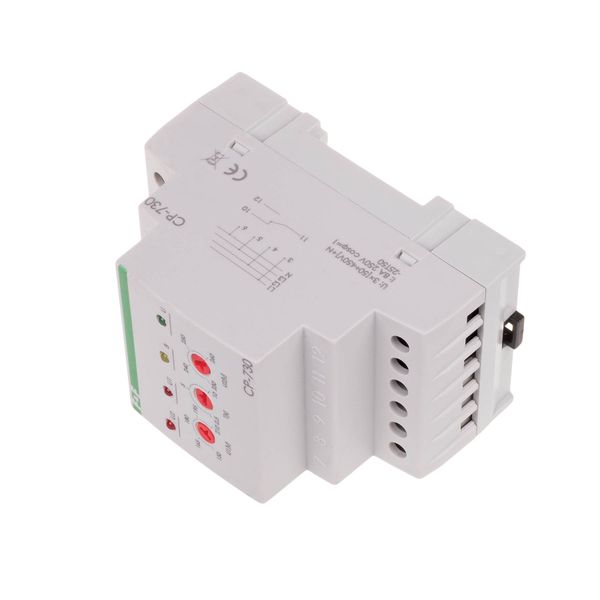

Voltage relays CP-730
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
39,91 €
EAN: 5908312597308
MPN: CP-730
Package: 1
Estimate delivery time at our warehouse (approx.):
2-3 weeks
Technical Information
| Item condition | New |
| Manufacture name | Voltage relays CP-730 |
| Brand | F&F |
| Categories |
Monitoring Relays
|
| Country of origin | PL |
| Harmonized System Code | 8536 4900 00 |
| Single-phase under voltage possible | No |
| Single-phase hysteresis possible | Yes |
| Three-phase hysteresis possible | Yes |
| Type of voltage measuring range | AC |
| Type of electric connection | Screw connection |
| Voltage measuring range 1 | 230-- V |
| Number of contacts as normally open contact | 1 |
Packing details
| Packing level 1 | 5908312597308 |
Other Technical data
| Width | 52.5 mm |
| Height | 90 mm |
| Depth | 65 mm |
| With detachable clamps | No |
| Three-phase under voltage possible | Yes |
| Single-phase over voltage possible | No |
| Three-phase over voltage possible | Yes |
| Contains function DC-under voltage | No |
| Contains function DC-over voltage | No |
| Contains function DC-voltage hysteresis | No |
| Voltage measuring range 2 | 230-260 V |
| Max. permitted off-delay time | 10 s |
| Min. adjustable off-delay time | 0.1 s |
| Response value voltage | 150-260 V |
Downloads
Supplier's declaration for products having preferential origin status
Deep link REACH
Declaration RoHS
Instructions for use
Description
Un=3×400V+N ; Io<10A ; montaż na szynie TH-35
