Voltage detector PHE4 10kV 50 Hz with gear coupling Category S image 1
Voltage detector PHE4 10kV 50 Hz with gear coupling Category S image 2
Voltage detector PHE4 10kV 50 Hz with gear coupling Category S thumbnail 1
Voltage detector PHE4 10kV 50 Hz with gear coupling Category S thumbnail 2
Dehn

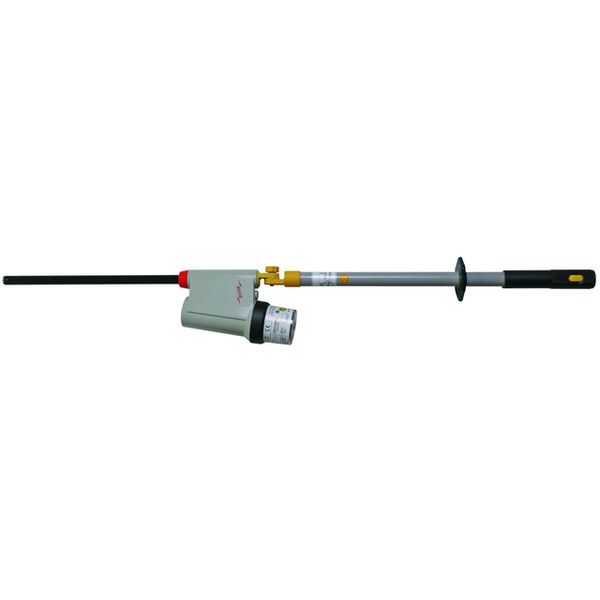

Voltage detector PHE4 10kV 50 Hz with gear coupling Category S

Order only
Price (excl. VAT):
1 363,14 €
This price is valid until 24.12.25
EAN: 4013364317253
MPN: 783110
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Voltage detector PHE4 10kV 50 Hz with gear coupling Category S
Brand Dehn
Categories Electrical Safety Equipment
Country of origin DE
Harmonized System Code 9030 3370 00
Frequency 50 Hz
Nominal voltage 10 kV

Packing details

Packing level 1 4013364317253, 4013364317253

Other Technical data

Model 1-pole
Application Switchgear and power cable for overhead lines
Voltage type AC
Type of indication Acoustic and optic
Immersing depth 230 mm
Category S
Scope of application Interior and outdoor installations
With self-test mechanism Yes
Usable at precipitation Yes
Total length 1060 mm
Extendable handle area Yes

Downloads

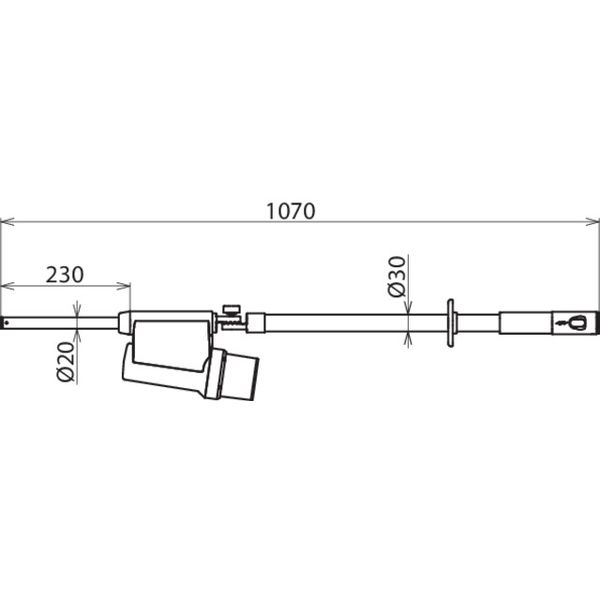

Product data sheet Dimensioned drawing Deep link REACH

Description

Capacitive PHE4 voltage detector in accordance with EN/IEC 61243-1 (DIN VDE 0682-411) for verifying safe isolation from supply voltage on all poles at the work location in accordance with EN 50110-1 (DIN VDE 0105-100) in electrical installations. Category "S" for switchgear installations and overhead lines. With universal gear coupling in accordance with EN/IEC 60832 (DIN VDE 0682-211). Suitable for use in wet weather conditions. With visual and acoustic indication and self-testing element of all active parts including test prod. Short transport length due to unscrewable insulating stick with plug-in coupling for extending the handle.

Accessories

Storage device for voltage detectors and sticks D 30mm
Order only
Dehn
Storage device for voltage detectors and sticks D 30mm
49,23 €
This price is valid until 24.12.25
EAN: 4013364004184
MPN: 700007
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Onion-shaped electrode as of 3kV with tip a. M8 threaded bolt f. PHE/P
Order only
Dehn
Onion-shaped electrode as of 3kV with tip a. M8 threaded bolt f. PHE/P
19,51 €
This price is valid until 24.12.25
EAN: 4013364051836
MPN: 766913
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Artificial leather bag 1200x250x160mm
Order only
Dehn
Artificial leather bag 1200x250x160mm
160,79 €
This price is valid until 24.12.25
EAN: 4013364056596
MPN: 766601
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Artificial leather bag 2470x220x100mm DB Z. No. 3 Ebgw 02.51
Order only
Dehn
Artificial leather bag 2470x220x100mm DB Z. No. 3 Ebgw 02.51
319,92 €
This price is valid until 24.12.25
EAN: 4013364056626
MPN: 766602
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Insulating stick with gear and plug-in coupling L 670 mm
Order only
Dehn
Insulating stick with gear and plug-in coupling L 670 mm
237,64 €
This price is valid until 24.12.25
EAN: 4013364115026
MPN: 766368
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Handle extension with plug-in coupling L 710mm
Order only
Dehn
Handle extension with plug-in coupling L 710mm
142,29 €
This price is valid until 24.12.25
EAN: 4013364115033
MPN: 766335
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Extension handle with plug-in coupling D 43mm L 1280mm
Order only
Dehn
Extension handle with plug-in coupling D 43mm L 1280mm
212,99 €
This price is valid until 24.12.25
EAN: 4013364121805
MPN: 766466
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Extension handle with plug-in coupling D 43 mm L 910mm
Order only
Dehn
Extension handle with plug-in coupling D 43 mm L 910mm
194,57 €
This price is valid until 24.12.25
EAN: 4013364121812
MPN: 766456
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
End fitting with plug-in coupling and aluminium eye
Order only
Dehn
End fitting with plug-in coupling and aluminium eye
82,29 €
This price is valid until 24.12.25
EAN: 4013364125193
MPN: 766889
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Sealing unit with plug-in coupling
Order only
Dehn
Sealing unit with plug-in coupling
39,20 €
This price is valid until 24.12.25
EAN: 4013364125209
MPN: 766888
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
