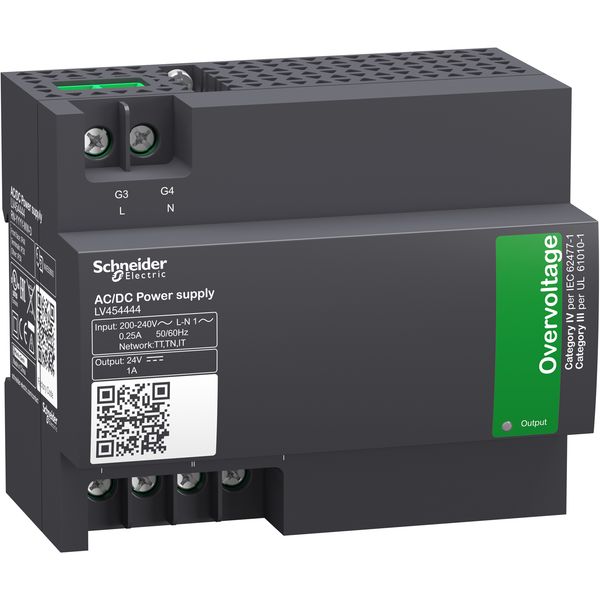

VOEDING 220VWS
Order only
Price (excl. VAT):
396,73 €
EAN: 3606481190963
MPN: LV454444
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | VOEDING 220VWS |
| Brand | Schneider Electric |
| Categories |
AC/DC Power Supply Units
|
| Country of origin | CN |
| Voltage type of supply voltage | AC |
| Power output | 24 W |
| Output voltage stabilized | Yes |
| Type of electric connection | Screw connection |
| Stabilized | Yes |
| Degree of protection (IP) | IP3X |
| 1st secondary output voltage at DC | 22.8-25.2 V |
| Secondary voltage adjustable | No |
| Rated supply voltage at AC 50 Hz | 170-264 V |
| Rated supply voltage at AC 60 Hz | 170-264 V |
| Short-circuit-proof | Yes |
| Max. output current 1 | 1 A |
| Max. output current 2 | 0 A |
| Max. output current 3 | 0 A |
Packing details
| Packing level 1 | 3606481190963 |
Other Technical data
| Width | 108 mm |
| Height | 90 mm |
| Depth | 67.5 mm |
| Built-in height | 90 mm |
| Power consumption | 4.2 VA |
| Modular version | Yes |
| Suitable for safety functions | Yes |
| Rail mounting possible | Yes |
| Wall mounting possible | Yes |
| Direct mounting possible | Yes |
| Performance level according to EN ISO 13849-1 | None |
| SIL according to IEC 61508 | None |
