VMV21LR1/UNV1
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | VMV21LR1/UNV1 |
| Brand | EATON |
| ETIM | EC001952 |
| Lamp type | LED not exchangeable |
| Nominal voltage | 120-277 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Wide beam 41-80° |
Packing details
| Packing level 1 | 3066227645124 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Conductor cross section | 6 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC/DC |
| Type of control gear | Electronic ballast |
| Adjustable | No |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| For Ex-zone gas | 1, 2 |
| With light source | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| For Ex-Zone dust | 21, 22 |
| Constant light output (CLO) | No |
| Type of wiring | Through wiring included |
| Degree of protection (NEMA) | Other |
| Exchangeable control gear | No |
| Power factor | 0.9 |
Description

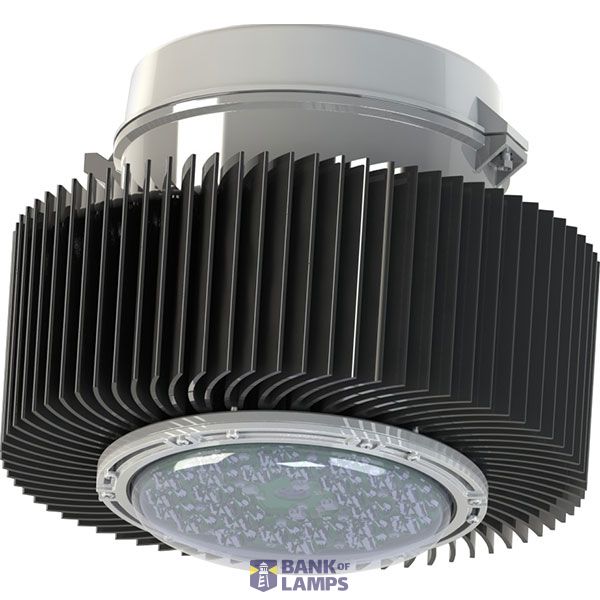

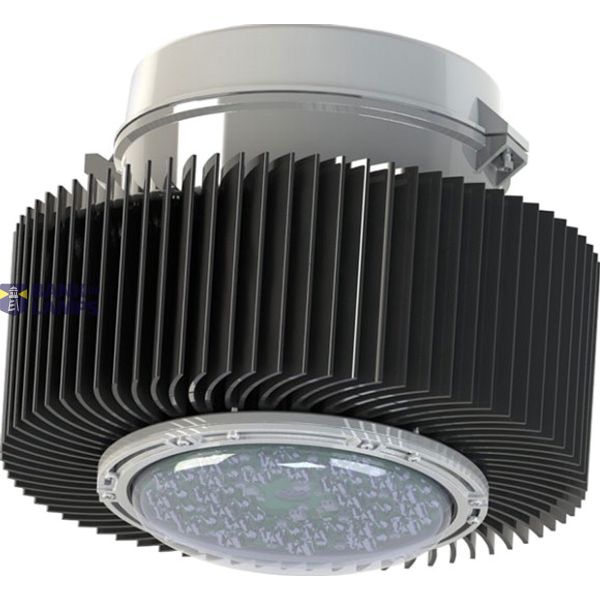

Ex-floodlight with High Power LEDs für Zone 2, 21 and 22Ex-pendant LED lamp module (without top mounting module, please order separately) VMV LED 21L 196 W Typ I
