VIALOX® NAV®-E SUPER 4Y® 100W SUPER 4Y E40 12X1 RU OSRAM
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | VIALOX® NAV®-E SUPER 4Y® 100W SUPER 4Y E40 12X1 RU OSRAM |
| Brand | LEDVANCE |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8539 3220 00 |
| ETIM | EC000821 |
| Socket | E40 |
| Luminous flux | 10100 lm |
| Total length | 180 mm |
| Diameter | 76 mm |
| Lamp efficacy | 101 lm/W |
| Colour temperature | 2000 K |
| Lamp power | 100 W |
Packing details
| Packing level 1 | 4099854126314 |
| Packing level 2 | 4099854126321 |
Other Technical data
| Average nominal lifespan | 32000 h |
| Weighted energy consumption in 1000 hours | 104 kWh |

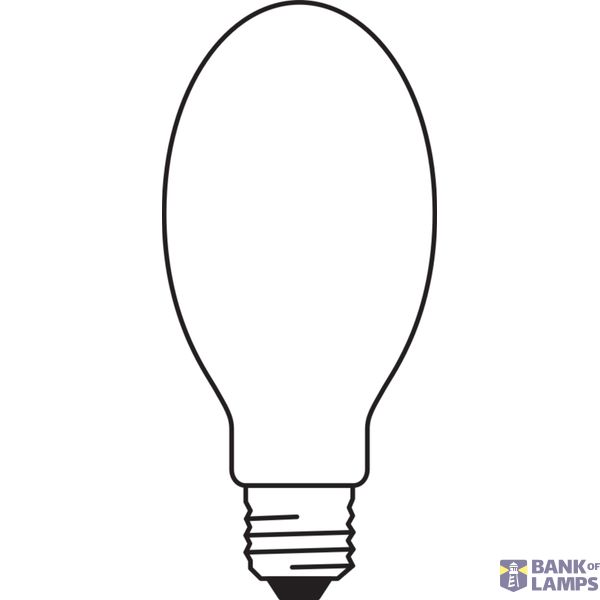

| Lamp designation | ED23.5 |
| Energy efficiency class according to EU regulation 2019/2015 | F |
Downloads
Description
High-pressure sodium vapor lamps for open and enclosed luminaires. Product features: Lamp survival factor: 95 % after 16,000 h burning time. Lamp maintenance factor: ≥ 80 % after 16,000 h burning time (according to DIN 13201). Service lifetime: 4 years (at approx. 11 h/day). Dimmable on conventional control gears and electronic control gears. Product benefits: Very high luminous efficacy. Very good luminous flux maintenance throughout the life of the lamp. Energy savings of up to 50 % when replacing mercury vapor lamps (HQL). Optimum energy efficiency on POWERTRONIC® PTo 3DIM ECGs. Areas of application: Streets. Outdoor lighting. Industrial installations. Suitable for use in open and enclosed luminaires. Outdoor applications only in suitable luminaires.
