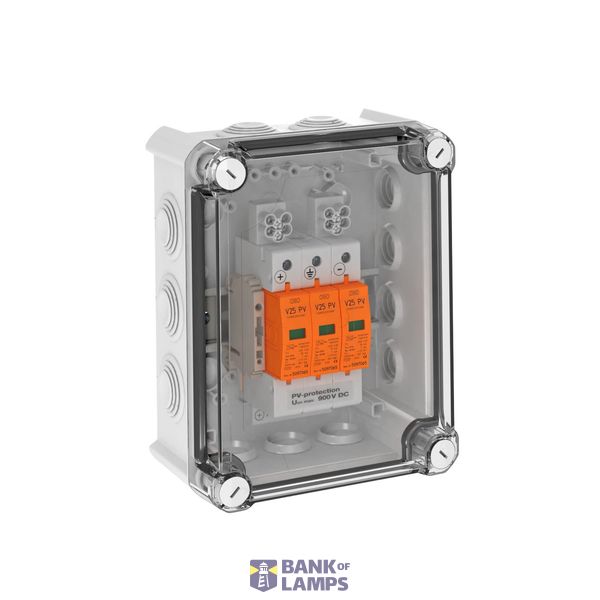

VG-V25-BC3-PH900 900V DC
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | VG-V25-BC3-PH900 900V DC |
| Brand | OBO Bettermann |
| Country of origin* | HU |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3030 00 |
| ETIM | EC001457 |
| Lightning impulse current (10/350 µs) | 7 kA |
| Voltage protection level | 3 kV |
| Max. continuous voltage AC | 0 V |
| Nominal voltage AC | 0 V |
| Nominal voltage DC | 0 V |
| Test class | Type 1 + 2 |
| Voltage protection level L-N | 0 kV |
| Max. continuous voltage DC | 900 V |
| Degree of protection (IP) | IP66 |
| Max. PV-voltage | 900 V |
| Voltage protection level N-PE | 0 kV |
Other Technical data
| Mounting method | Pre-mounted in housing |
| Number of poles | 0 |
| Construction size | Other |
| Remote signalling | No |
| Follow current extinguishing capability | 0 kA |
| Signalling at the device | Optic |
| Integrated backup fuse | No |
| Max. conductor cross section solid (solid, stranded) | 16 mm² |
| Max. conductor cross section flexible (fine-strand) | 10 mm² |
| Voltage protection level (DC+ - DC-) | 0 kV |
| Voltage protection level (DC+/DC- - PE) | 0 kV |
| Specific energy (W/R) | 0 kJ/Ohm |
| Energy-coordinated protection effect with regard to the terminal equipment | No |
| System configuration DC | Yes |
| System configuration IT | No |
| System configuration TN | No |
| System configuration TN-C | No |
| System configuration TN-S | No |
| System configuration TT | No |
| System configuration other | No |
| System configuration TN-C-S | No |
