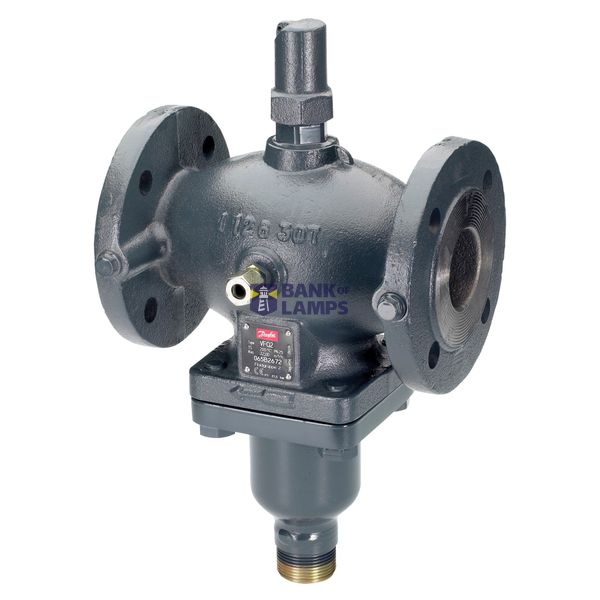

VFQ 2 DN50 PN16 Kvs32
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | VFQ 2 DN50 PN16 Kvs32 |
| Brand | Danfoss |
| Country of origin* | DK |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8481 8071 00 |
| ETIM | EC011435 |
| Connection 1 | Flange |
| Connection 2 | Flange |
| Material quality | Cast iron GG 25 (GJL-250) |
| Article compression class | PN 16 |
| Flange compression class | PN 16 |
Packing details
| Packing level 1 | 5702421809235 |
Other Technical data
| With flow measuring point | No |
| Automatic flow control | No |
| Suitable for process water | No |
| Max. medium temperature (continuous) | 200 °C |
| Nominal diameter connection 2 | DN 50 |
| Min. medium temperature (continuous) | 2 °C |
| Outer pipe diameter connection 1 | 50 mm |
| Outer pipe diameter connection 2 | 50 mm |
| Length of connection 1 | 0 mm |
| Length of connection 2 | 0 mm |
| Working length connection 1 | 0 mm |
| Working length connection 2 | 0 mm |
| Min. pressure difference | 0 bar |
| Shaft height | 0 mm |
| Suitable for tap water | No |
| Stroke length | 12 mm |
| With coupling connection 1 | Yes |
| With coupling connection 2 | Yes |
| Kvs value | 32 |
| Nominal diameter connection 1 | DN 50 |
| Max. pressure difference in opened position | 16 bar |
| Leakage loss of Kvs value | 0.03 % |
| Control ratio (Svo) | 0 % |
| Suitable for heating | No |
| Suitable for cooling | No |
| DVGW quality mark | No |
| DIN-CERTCO certificate | No |
| Tested according to TÜV GS | No |
