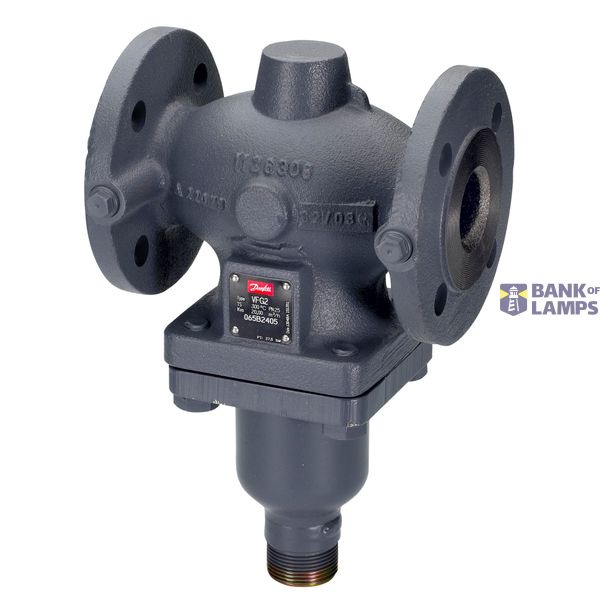

VFG 2 DN15 PN25 Kvs 4

Name: VFG 2 DN15 PN25 Kvs 4
Brand: Danfoss
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	VFG 2 DN15 PN25 Kvs 4
Brand	Danfoss
Country of origin*	DK
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8481 8071 00
ETIM	EC011435
Material quality	Cast iron GGG 40 (GJS-400-15)
Article compression class	PN 25
Flange compression class	PN 25

Packing level 1

5702421803189

Max. medium temperature (continuous)	200 °C
Min. medium temperature (continuous)	2 °C
Length of connection 1	0 mm
Length of connection 2	0 mm
Working length connection 1	0 mm
Working length connection 2	0 mm
With coupling connection 1	Yes
With coupling connection 2	Yes
Kvs value	4
Max. pressure difference in opened position	20 bar
Leakage loss of Kvs value	0.03 %
Control ratio (Svo)	0 %
