  • VFG 2 DN100 PN25 Kvs 125

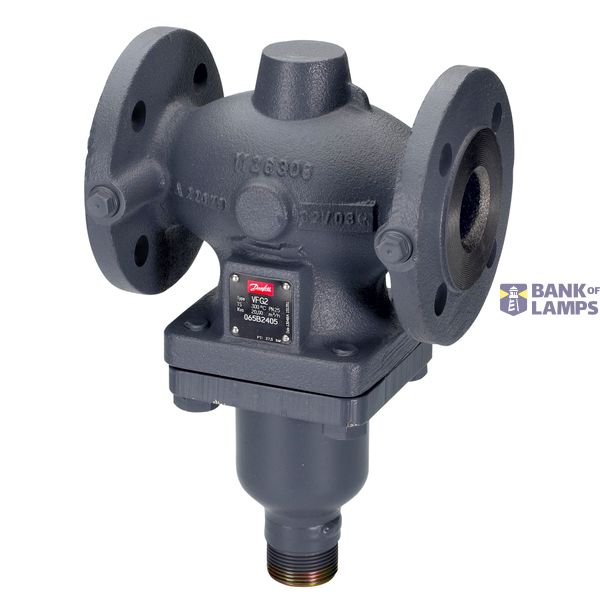

VFG 2 DN100 PN25 Kvs 125 image 1
Danfoss

VFG 2 DN100 PN25 Kvs 125

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name VFG 2 DN100 PN25 Kvs 125
Brand Danfoss
Country of origin* DK
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8481 8071 00
ETIM EC011435
Material quality Cast iron GGG 40 (GJS-400-15)
Article compression class PN 25
Flange compression class PN 25

Packing details

Packing level 1 5702421803264

Other Technical data

Max. medium temperature (continuous) 200 °C
Min. medium temperature (continuous) 2 °C
Length of connection 1 0 mm
Length of connection 2 0 mm
Working length connection 1 0 mm
Working length connection 2 0 mm
With coupling connection 1 Yes
With coupling connection 2 Yes
Kvs value 125
Max. pressure difference in opened position 15 bar
Leakage loss of Kvs value 0.03 %
Control ratio (Svo) 0 %
