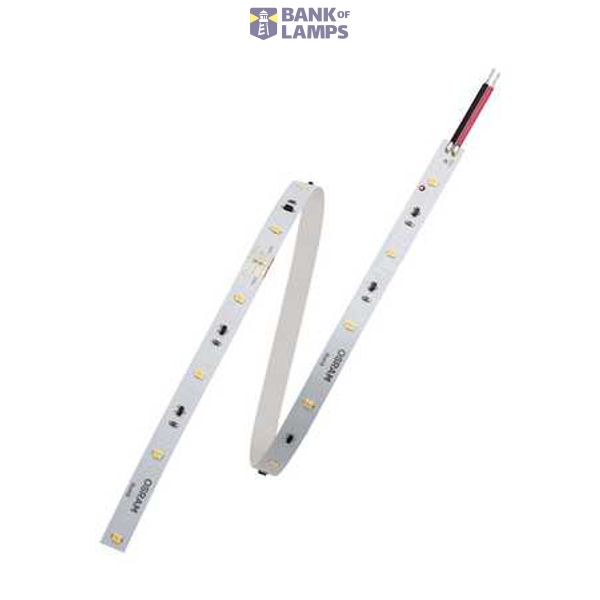

VF600-G2-822-06 46W 24V 20X1 OSRAM
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | VF600-G2-822-06 46W 24V 20X1 OSRAM |
| Brand | OSRAM |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| ETIM | EC002706 |
| Width | 8 mm |
| Beam angle | 120 ° |
| Length | 6000 mm |
| Height/depth | 1.5 mm |
| Lamp type | LED not exchangeable |
| Degree of protection (IP) | IP20 |
| Lamp voltage | 24 V |
| Colour temperature | 2200 K |
Packing details
| Packing level 1 | 4052899398146 |
Other Technical data
| Mounting method | Surface mounting |
| Protection class | None |
| Model | Strip |
| Voltage type | DC |
| Type of control gear | Not required |
| Diameter | 0 mm |
| With protective cover | No |
| Lowest bending radius | 50 mm |
| Length of particular segments | 166 mm |
| Max. system power | 0 W |
| Degree of protection (NEMA) | Other |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Power factor | 0 |
Description
CBP_02.00 Product family benefits, all [calc.]: Energy saving low-power flexible LED strip. Pre-wired LED strip, simple and quick plug-and-play installation. Good light output due to homogeneous LED distance and high color consistency. Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back. Easy installation with optional track system. Easy to cut and reconnect to the reliable SLIMCONNECT system. CBP_01.00 Product family features, all [calc.]: Available with light color: Warm White, Cool White. Luminous flux: up to 690 lm/m. High color consistency: 4 SDCM. Self-cooling. Beam angle per module: 120°. Dimmable with suitable OPTOTRONIC© control gears. Type of protection: IP20. CBP_03.00 Areas of applicat, all [calc.]: Hospitality. Display cabinet lighting. Signage. Architecture lighting. Cove lighting. Wall integration. CBP_08.00 Equipment / Acces, all [calc.]: SLIMCONNECT system FLEX IP54 connector. Optional Track system.
