VERL. DRUKKNOP BA9S RD 120VACDC
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
43,24 €
EAN: 3389110930474
MPN: 9001K3L38RH13
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | VERL. DRUKKNOP BA9S RD 120VACDC |
| Brand | Schneider Electric |
| Categories |
Push Buttons
|
| Country of origin | FR |
| Harmonized System Code | 8536 5080 00 |
| Colour button | Red/green |
| Number of command positions | 1 |
| Type of button | Flat |
| Degree of protection (IP) | IP66 |
Packing details
| Packing level 1 | 3389110930474 |
Other Technical data
| Hole diameter | 31 mm |
| Suitable for illumination | Yes |
| Spring-return | Yes |
| Colour front ring | Chrome |
| Type of electric connection | Screw connection |
| Width opening | 0 mm |
| Height opening | 0 mm |
| Material front ring | Metal |
| With front ring | Yes |
| Construction type lens | Round |
| Supply voltage lamp | 120 V |
| Switching function latching | No |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Degree of protection (NEMA) | 13 |
Description

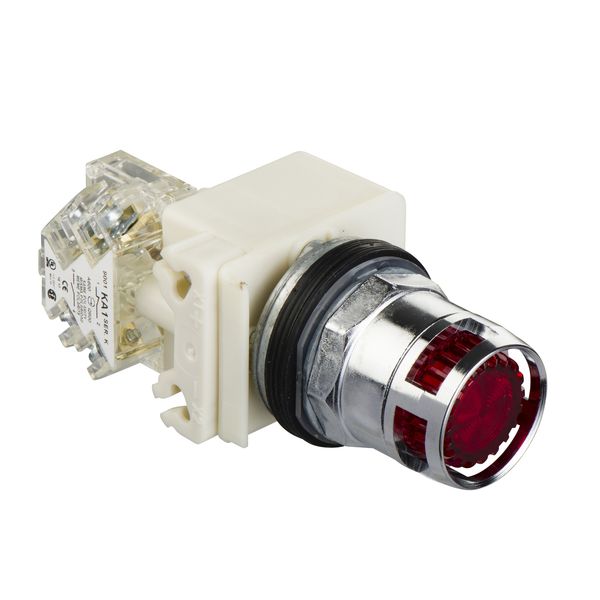

This Harmony 9001K, modular illuminated flush red push button is supplied with a full guard. It has a chromium-plated metal bezel, is supplied with a 110V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
