  • Ventilation gland, PG13,5, 6-12mm, stainless steel, IP68

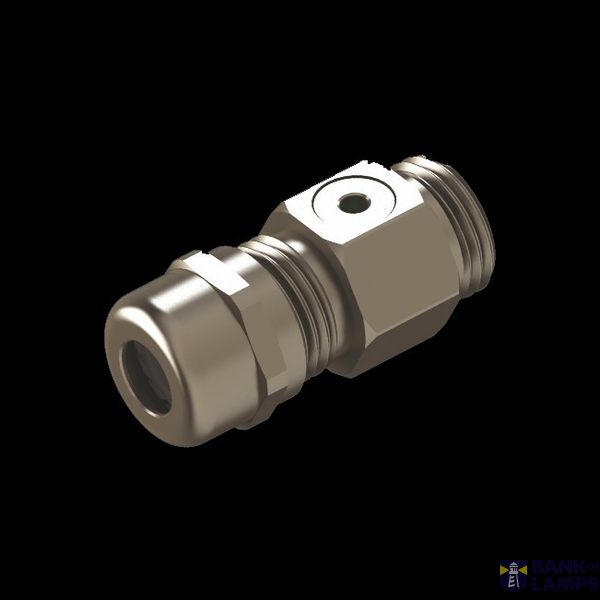

Ventilation gland, PG13,5, 6-12mm, stainless steel, IP68 image 1

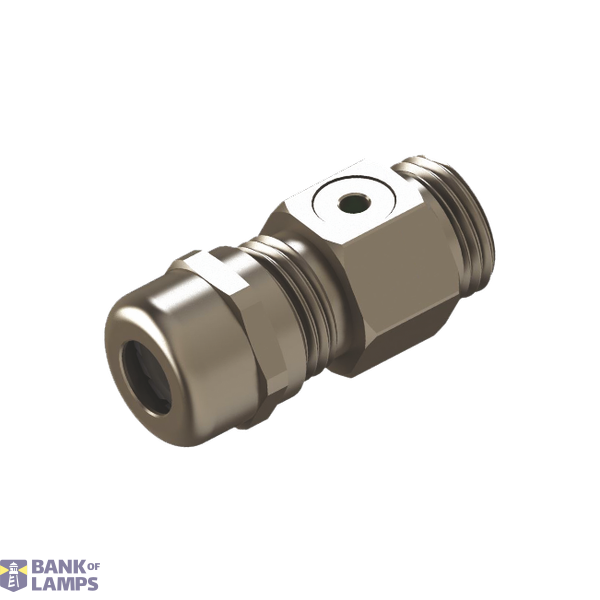

Ventilation gland, PG13,5, 6-12mm, stainless steel, IP68 image 2
Ventilation gland, PG13,5, 6-12mm, stainless steel, IP68 thumbnail 1
Ventilation gland, PG13,5, 6-12mm, stainless steel, IP68 thumbnail 2
Morek

Ventilation gland, PG13,5, 6-12mm, stainless steel, IP68

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ventilation gland, PG13,5, 6-12mm, stainless steel, IP68
Brand Morek
ETIM EC000441
Model Straight
Thread length 6.5 mm
Material quality Stainless steel V2A
Thread type PG
Material Metal
Suitable for cable diameter 6-12 mm
Degree of protection (IP) IP68
Nominal thread size metric/PG 13.5

Other Technical data

Halogen free Yes
Bend radius protection/trumpet flare No
With strain relief Yes
EMC-version No
Type of sealing Sealing ring
Operating temperature -20-100 °C
Explosion-tested version No
With locknut No
Separable screw gland Yes
Snapping in opening No
Wrench width 22 mm
