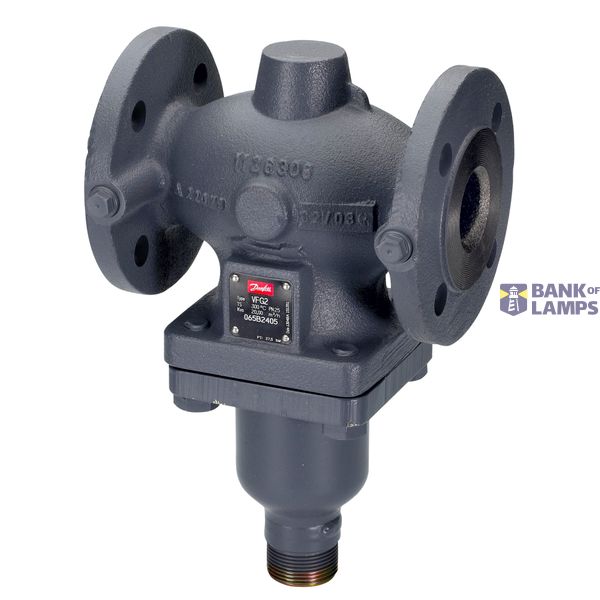

ventiel VFG2 KVS160 125 16 GG

Name: valve VFG2 KVS160 125 16 GG
Brand: Danfoss
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	valve VFG2 KVS160 125 16 GG
Brand	Danfoss
Country of origin*	DK
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8481 8071 00
ETIM	EC011435
Material quality	Cast iron GG 25 (GJL-250)
Article compression class	PN 16
Flange compression class	PN 16

Packing level 1

5702421803141

Max. medium temperature (continuous)	200 °C
Min. medium temperature (continuous)	2 °C
Length of connection 1	0 mm
Length of connection 2	0 mm
Working length connection 1	0 mm
Working length connection 2	0 mm
With coupling connection 1	Yes
With coupling connection 2	Yes
Kvs value	160
Max. pressure difference in opened position	15 bar
Leakage loss of Kvs value	0.03 %
Control ratio (Svo)	0 %
