CHARX T2HBI12-DC250-3,0M2 - Vehicle charging inlet
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
753,21 €
per pcs
EAN: 4063151602277
MPN: 1319004
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | CHARX T2HBI12-DC250-3,0M2 - Vehicle charging inlet |
| Brand | Phoenix Contact |
| Categories |
Charging connector E-Mobility
|
| Country of origin | PL |
| Harmonized System Code | 8544 4290 00 |
| Nominal voltage | 0 V |
| Width | 0 mm |
| Height | 0 mm |
| Depth | 0 mm |
| Type of current | DC |
| Degree of protection (IP) | Other |
| Standard | Type 2 CCS |
| With interlocking actuator | Yes |
| With access interlocking | No |
| Number of communication contacts | 3 |
| Max. nominal current | 0 A |
| Length of the fixed connection cable | 3 m |
| LED integrated | No |
Packing details
| Packing level 1 | 4063151602277, 4063151602277 |
Description

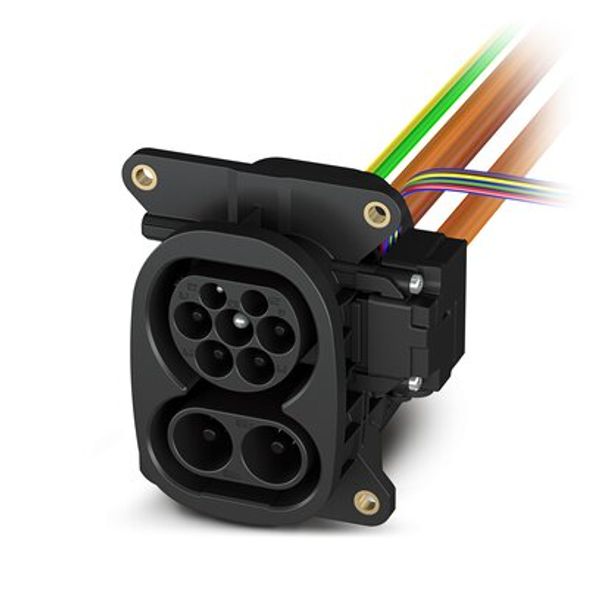

CHARX connect, Vehicle charging inlet, for charging with direct current (DC), CCS type 2, IEC 62196-2, IEC 62196-3, 250 A / 1000 V (DC), Single wires, length: 3 m, M6, X-Line, housing: black, A protective cap is supplied as standard for the DC contacts.
