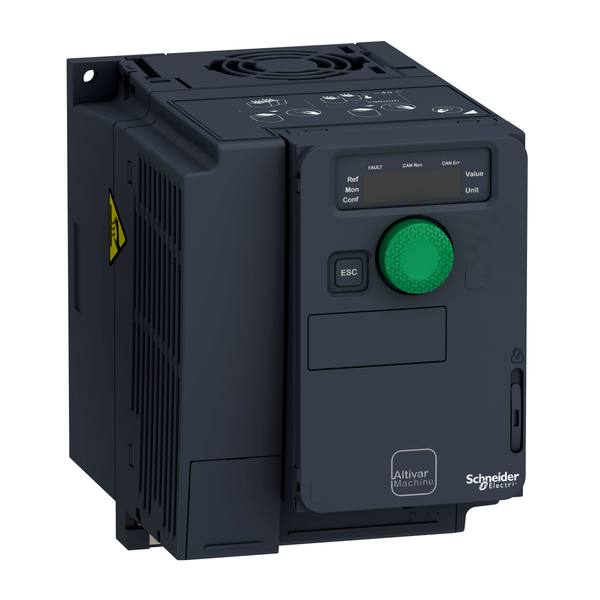

Variable speed drive, Altivar Machine ATV320, 1.5 kW, 380...500 V, 3 phases, compact
In stock: Yes
Vendor stock: Yes
Minimal order quantity: 1
Price (excl. VAT):
369,58 €
EAN: 3606480966750
MPN: ATV320U15N4C
Package: 1
Pallet: 30
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Variable speed drive, Altivar Machine ATV320, 1.5 kW, 380...500 V, 3 phases, compact |
| Brand | Schneider Electric |
| Categories |
Frequency converter =< 1 kV
|
| Country of origin | ID |
| Mains voltage | 380-500 V |
| Mains frequency | 50/60 Hz |
| Number of phases input | 3 |
| Relative symmetric net voltage tolerance | 10 % |
| Relative symmetric net frequency tolerance | 5 % |
Packing details
| Packing level 1 | 3606480966750 |
| Packing level 2 | 3606480966750 |
Other Technical data
| Width | 105 mm |
| Height | 142 mm |
| Depth | 158 mm |
| With control element | Yes |
| Number of digital inputs | 6 |
| Number of digital outputs | 1 |
| Number of analogue inputs | 3 |
| Number of analogue outputs | 1 |
| Supporting protocol for LON | No |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 1 |
| With optical interface | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for CAN | Yes |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | Yes |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| Degree of protection (IP) | IP20 |
| With PC connection | Yes |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| 4-quadrant operation possible | Yes |
| Number of interfaces PROFINET | 0 |
| Type of converter | U converter |
| Number of phases output | 3 |
| Integrated breaking resistance | No |
| Application in industrial area permitted | Yes |
| Application in domestic- and commercial area permitted | No |
| Max. output frequency | 599 Hz |
| Max. output at linear load at rated output voltage | 1.5 kW |
| Max. output at quadratic load at rated output voltage | 1.5 kW |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | Yes |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Max. output voltage | 500 V |
| Nominal output current I2N | 4.1 A |
| Supporting protocol for BACnet | No |
| Degree of protection (NEMA) | 1 |
Downloads
ECOP (Environmental Code of Practice)
Declaration EPD (Environmental Product Declaration)
Technical manual
Instructions for use
Others
Declaration DOC CE (Declaration of conformity CE)
Mounting instruction
Description
This component is designed to regulate and stabilize electrical signals within a circuit, ensuring consistent power delivery and protecting connected devices from voltage fluctuations or interference. It supports a range of voltages and configurations commonly found in industrial systems.
### Electrical Characteristics
Operates in low-to-mid voltage ranges while maintaining precision output. Features built-in surge mitigation for transient events — suitable for both dynamic loads and steady-state operations. Performance may vary depending on environmental conditions such as temperature or humidity.
### Mechanical Features
Compact housing with standardized mounting interface — facilitates integration into existing layouts, particularly control panels or enclosures. Constructed with reinforced materials to withstand mechanical stress during installation or use. Physical access ports allow connection via common conductor types; secure terminal points prevent accidental disconnection.
- Input tolerance: up to ±5% variation in nominal operating voltage range.
- Output stability: maintains operational consistency over prolonged duty cycles up to 10 hours per session.
- Not suited for outdoor environments without external protective casing.
- Maximum ambient temperature limit: 45°C during operation.
- Rated lifespan assumes proper maintenance but decreases under sustained overvoltage scenarios.
