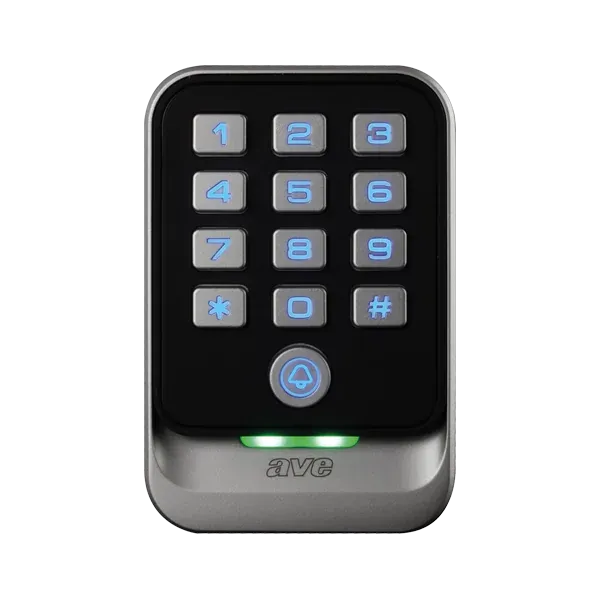

VANDAL-PROOF NUMERICAL KEYPAD FOR ACCESS CONTROL. RGB BACKLIGHTING. INTEGRATED MIFARE READER. IP65. IK8. GREY COLOR

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

301,70 €

This price is valid until 24.12.25

EAN: 8008379515981

MPN: 442MBEXT-TN

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	VANDAL-PROOF NUMERICAL KEYPAD FOR ACCESS CONTROL. RGB BACKLIGHTING. INTEGRATED MIFARE READER. IP65. IK8. GREY COLOR
Brand	AVE
Categories	Other Products

Packing details

Packing level 1

8008379515981

Description

The device allows access to a gate by entering a valid code. Two operating modes: stand alone or supervised by WEB-SERVER. In "Supervised" mode, using the AVECLOUD APP, it is possible to create codes and monitor the history of passages remotely. The keyboard is able to read MIFARE cards. Wall-mounted installation on round, square and 3-module vertical boxes. The installation of a maximum of 15 devices downstream of a web-server is permitted. If it is necessary to exceed the number of 15 devices, add a second supervision web-server and create a second bus separate from the first. The MODBus wiring of the devices MUST be with Daisy chain type. Maximum time between entering a code and the actual actuation of the relay is: n°5 devices: 800 msec n°10 devices: 1.3 sec n°15 devices: 1.8 sec. Degree of protection IP65. IK8 impact resistance grade. Dimensions (LxHxD): 80x120x22 mm
