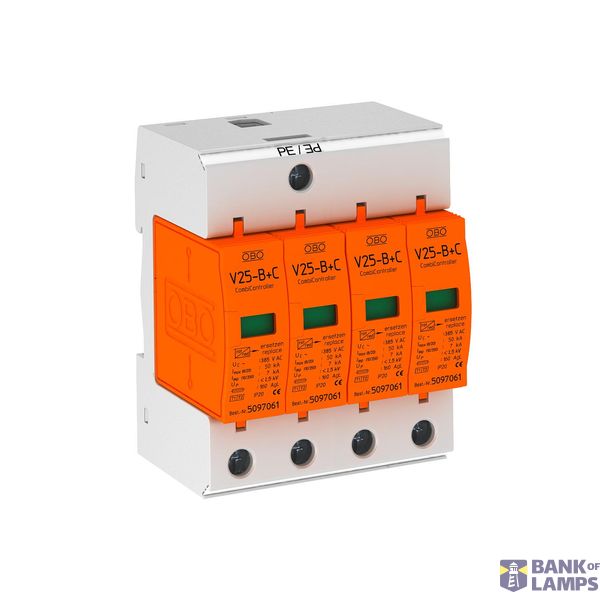

V25-B+C 4-385 CombiController V25 4-pole design 385V
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | V25-B+C 4-385 CombiController V25 4-pole design 385V |
| Brand | OBO Bettermann |
| Country of origin* | HU |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3030 00 |
| ETIM | EC001457 |
| Lightning impulse current (10/350 µs) | 7 kA |
| Voltage protection level | 1.5 kV |
| Max. continuous voltage AC | 385 V |
| Nominal voltage AC | 350 V |
| Nominal voltage DC | 350 V |
| Test class | Type 1 + 2 |
| Voltage protection level L-N | 0 kV |
| Max. continuous voltage DC | 200 V |
| Degree of protection (IP) | IP20 |
| Max. PV-voltage | 0 V |
| Voltage protection level N-PE | 0 kV |
Packing details
| Packing level 1 | 4012195256144 |
| Packing level 2 | 4012195256182 |
| Packing level 3 | 4012197071233 |
Other Technical data
| Number of poles | 4 |
| Construction size | 4 modular spacing |
| Remote signalling | No |
| Follow current extinguishing capability | 0 kA |
| Signalling at the device | Optic |
| Integrated backup fuse | No |
| Max. conductor cross section solid (solid, stranded) | 35 mm² |
| Max. conductor cross section flexible (fine-strand) | 0 mm² |
| Voltage protection level (DC+ - DC-) | 0 kV |
| Voltage protection level (DC+/DC- - PE) | 0 kV |
| Specific energy (W/R) | 0 kJ/Ohm |
| Energy-coordinated protection effect with regard to the terminal equipment | No |
| System configuration DC | No |
| System configuration IT | No |
| System configuration TN | Yes |
| System configuration TN-C | Yes |
| System configuration TN-S | Yes |
| System configuration TT | No |
| System configuration other | No |
| System configuration TN-C-S | Yes |
| Voltage switching spark gap technology | No |
| Overcurrent protected voltage tapping | No |
Downloads
Description
Kombinēts novadītājs, sastāv no zibens novadītāja un pārsprieguma novadītāja, tips 1+2
• Pilnīgi nokomplektēta vienība, sastāv no augšējās un apakšējās daļas, samontēta un gatava pieslēgšanai
• TN sistēmai
• Novadītājs, iespraužams, ar dinamisku atdalošo iekārtu
• Ar optisku funkciju indikatoru
• Aizsardzības līmenis < 1,5 kV
• Iekapsulēts, dzirksteles neizvadošs cinka oksīda varistoru novadītājs ievietošanai tirdzniecībā pieejamu sadalītāju korpusos
• Marķēti pieslēgumi
Lietojuma piemērs: Ēkās, kurām strāvu pievada ar gaisvadu līniju vai zibensaizsardzības potenciālu izlīdzināšanas ierīkošanai dzīvojamās ēkās.
