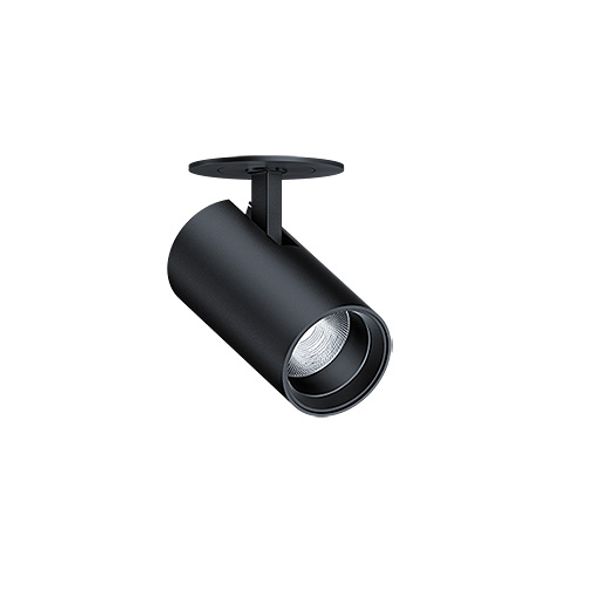

V2-SR S 1800-940 SWI LFL BK BK - LED semi-recessed spotlight, tiltable
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 4053167676317
MPN: 62928311
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | V2-SR S 1800-940 SWI LFL BK BK - LED semi-recessed spotlight, tiltable |
| Brand | Zumtobel |
| Categories |
Recessed lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Colour rendering index CRI | 90-100 |
| Height/depth | 145 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Medium beam 21-40° |
| Colour temperature | 4000 K |
| Max. system power | 16 W |
| Rated luminous flux according to IEC 62722-2-1 | 1950 lm |
| Luminaire efficacy | 122 lm/W |
Packing details
| Packing level 1 | 4053167676317, 4053167676317 |
Other Technical data
| Protection class | II |
| Outer diameter | 75 mm |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | White |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, structured |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | No |
| Connectable conductor cross section | 0.75-1.5 mm² |
| Colour of light | White |
| Adjustability | Rotating and swivelling |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 1950 lm |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM2 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 11 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 85 % |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 80 mm |
| Power factor | 0.95 |
Downloads
Description
LED semi-recessed spotlight optimised for efficient and high-output accent lighting in retail and automotive applications as well as architectural lighting; Colour rendering Ra > 90, colour temperature 4000 K (neutral white); Luminaire or spotlight with lens, FLOOD distribution characteristic 30 °; Chromaticity tolerance (initial MacAdam): 2; Luminaire luminous flux: 1950 lm, Luminaire efficacy: 122 lm/W; service life: 50000 h for luminous flux at 85% of initial value; Luminaire input power: 16 W; complete model comprising spotlight and converter switchable luminaire for installation in ceiling recess; electrical connection: 2-pole terminal; mains voltage: 220-240 V / 50/60 Hz; multifunctional lamp unit rotates through 357°and swivels in/out (-20°/+45°); spotlight housing of die-cast aluminium, surface: black Micro-textured paint; excellent glare control via front ring made of polycarbonate black; front ring serves to accommodate the accessories (optical, protective glass, honeycomb louvre); specular reflector designed to be interchangeable and retrofitted, mounting: Recessed mounting in ceilings of thicknesses 1-40mm; ceiling cut-out: Ø68 mm, recessed depth: 80 mm; weight: 0.45 kg
Note: suitable for mounting in R68 concrete casting surround (60800816)
