V2 L 4100-830 SWI 3CUC SP BK BK - LED spotlight
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
258,85 €
EAN: 4053167425847
MPN: 60716117
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | V2 L 4100-830 SWI 3CUC SP BK BK - LED spotlight |
| Brand | Zumtobel |
| Categories |
Track lights and accessories
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Width | 115 mm |
| Colour rendering index CRI | 80-89 |
| Length | 220 mm |
| Height/depth | 246 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Narrow beam 11 - 20° |
| Colour temperature | 3000 K |
| Max. system power | 34 W |
| Rated luminous flux according to IEC 62722-2-1 | 3800 lm |
| Luminaire efficacy | 112 lm/W |
Packing details
| Packing level 1 | 4053167425847, 4053167425847 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | None |
| Connection type | Busbar adapter |
| Colour housing | Black |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, structured |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | Yes |
| Connectable conductor cross section | 1.5 mm² |
| Colour of light | White |
| Adjustability | Rotating and swivelling |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | Yes |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 3800 lm |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM2 |
| Total harmonic distortion | 10 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 1 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 85 |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | Yes |
| Power factor | 0.97 |
Downloads
Description

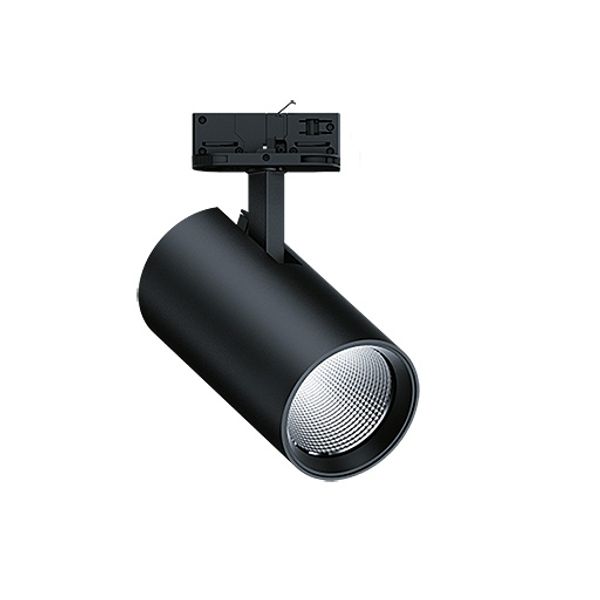

LED spotlight with stabilised colour temperature; optimised for efficient and high-output accent lighting in retail and automotive applications as well as architectural lighting; Luminaire with 3-phase adapter with InHouse converter (for 3-phase / L3+DALI track, for ceiling mounting only), switchable luminaire; adapter colour black; switchable luminaire; Colour rendering Ra > 80, colour temperature 3000 K (warm white); Luminaire or spotlight with SPOT light distribution 14 °; Chromaticity tolerance (initial MacAdam): 2; Luminaire luminous flux: 3800 lm, Luminaire efficacy: 112 lm/W; service life: 50000 h for luminous flux at 90%; Luminaire input power: 34 W; mains voltage: 220-240 V / 50/60 Hz; Spotlight rotatable through 337°

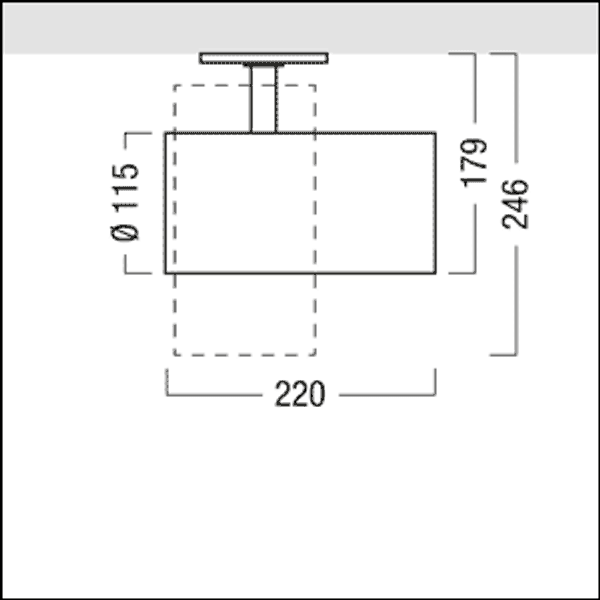

and tiltable through 90°; converter integrated in spotlight housing; spotlight housing made of die-cast aluminium, surface finish: black Micro-textured paint; excellent glare control via front ring made of polycarbonate black; front ring serves to accommodate the accessories (optical, protective glass, honeycomb louvre); specular reflector made of polycarbonate highly reflective aluminized finish, iridescence-free; specular reflector designed to be interchangeable and retrofitted; dimensions: 220x115x246 mm; weight: 1.25 kg;
Wall mounting not permitted; not suitable for point outlet;
