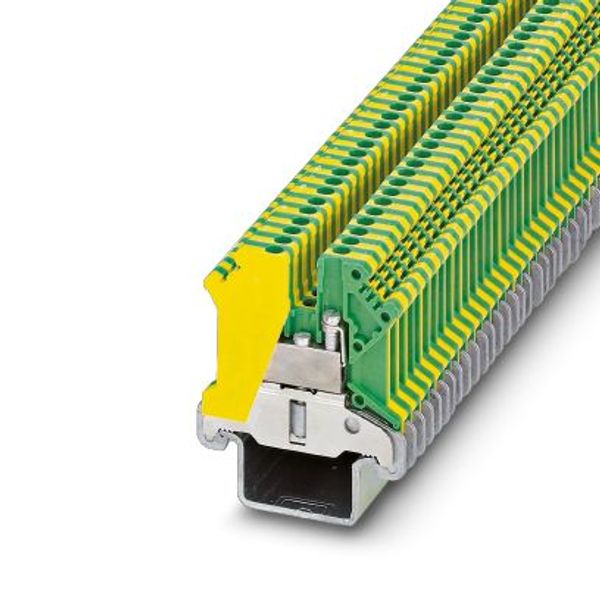

USLKG 3-1 - Ground terminal

Name: USLKG 3-1 - Ground terminal
Brand: Phoenix Contact
Price: 5.990 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

5,99 € per pcs

This price is valid until 24.12.25

EAN: 4017918002176

MPN: 0441106

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	USLKG 3-1 - Ground terminal
Brand	Phoenix Contact
Categories	DIN Rail Terminal Blocks
Country of origin	TR
Harmonized System Code	8536 9010 00
Mounting method	DIN rail (top hat rail) 35 mm
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
PEN function possible	No
Number of levels	1
Number of clamp positions per level	2
Connectable conductor cross section solid-core	0.2-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25-1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2-2.5 mm²
Connectable conductor cross section multi-wired	0.2-2.5 mm²

Packing details

Packing level 1

4017918002176, 4017918002176

Other Technical data

Colour	Other
Operating temperature	-60-105 °C
Inflammability class of insulation material according to with UL94	V0
Closing plate required	No
Material insulation body	Other

Description

Ground modular terminal block, When aligning with a feed-through terminal block with the same shape, an end cover must be interposed with insulation voltages of > 690 V, number of connections: 2, number of positions: 1, connection method: Screw connection, cross section: 0.2 mm² - 4 mm², mounting: PE foot with mounting screw, M2.5, mounting type: NS 35/15-2,3, color: green-yellow
