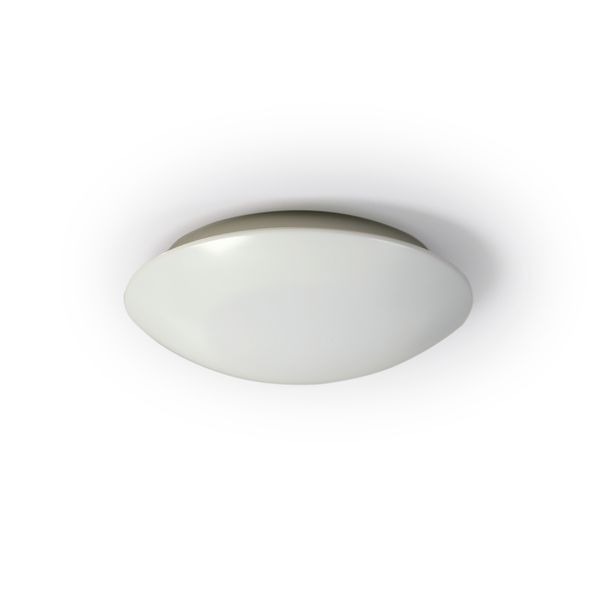

Universal luminaire AVR400 IP44 LED25W/830 DALI PC
Order only
Price (excl. VAT):
Price by request
EAN: 6438389010985
MPN: AVR400.125DDL/3K
Package: 1
Pallet: 42
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Universal luminaire AVR400 IP44 LED25W/830 DALI PC |
| Brand | Ensto |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Built-in mounting lamps Surface mounting lamps |
| Width | 400 mm |
| Colour housing | White |
| Colour rendering index CRI | 80-89 |
| Length | 400 mm |
| Height/depth | 127 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK05 |
| Degree of protection (IP) | IP44 |
| Beam angle | Open beam/diffuse |
| Max. system power | 25 W |
| Rated luminous flux according to IEC 62722-2-1 | 2782 lm |
| Luminaire efficacy | 111 lm/W |
Packing details
| Packing level 1 | 6438389010985, 6438389010985 |
| Packing level 2 | 6438389010985 |
Other Technical data
| Protection class | I |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Built-in diameter | 390 mm |
| Suitable for suspended mounting | No |
| Number of poles | 5 |
| Housing material | Plastic |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for wall mounting | Yes |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Colour of light | White |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | Yes |
| Dimming Zigbee | No |
| Dimming with push-button | Yes |
| No dim function | No |
| Dimming depending on control gear | No |
| Dimming DSI | No |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 42 mm |
| Power factor | 0.93 |
Description
AVR400 are stylish and effective luminaires for halls, corridors, offices and hotel rooms as well as in many applications at home. Luminaires are suitable both wet and dry premises.
