Universal earthing clamp K 20/25 Fl 20 T 15mm with tommy bar

Order only

Price (excl. VAT):

150,21 €

This price is valid until 24.12.25

EAN: 4013364114609

MPN: 774434

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Universal earthing clamp K 20/25 Fl 20 T 15mm with tommy bar
Brand	Dehn
Categories	Electrical Safety Equipment
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Connection type	Fixed ball point 25 mm
Clamping range	20 mm
Max. short circuit current	33.5 kA
For wire cross section	16-120 mm²

Packing details

Packing level 1

4013364114609, 4013364114609

Other Technical data

Application	Earth-side
Anti-rotation protection	Yes

Downloads

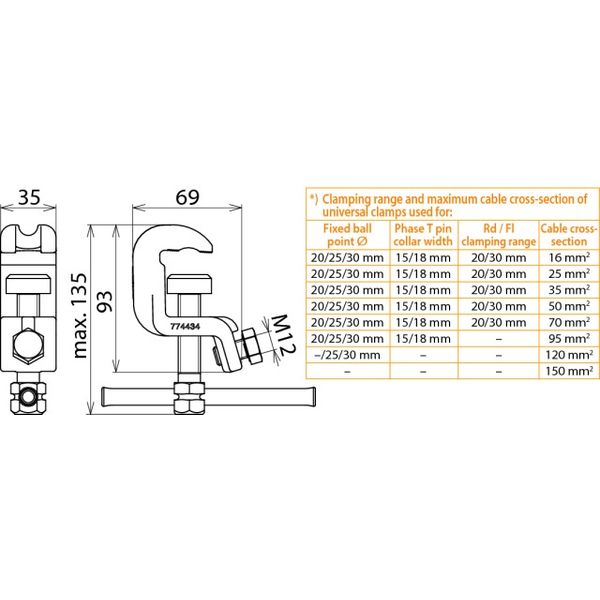

Product data sheet Dimensioned drawing Deep link REACH

Description

Universal earthing clamp with tommy bar for connecting the earthing cable to fixed ball points, T pins, round and flat conductors according to EN/IEC 61230 (DIN VDE 0683-100). PK1 anti-rotation element.
